TF029B-1001-D

Active

Nidec Components Corporation

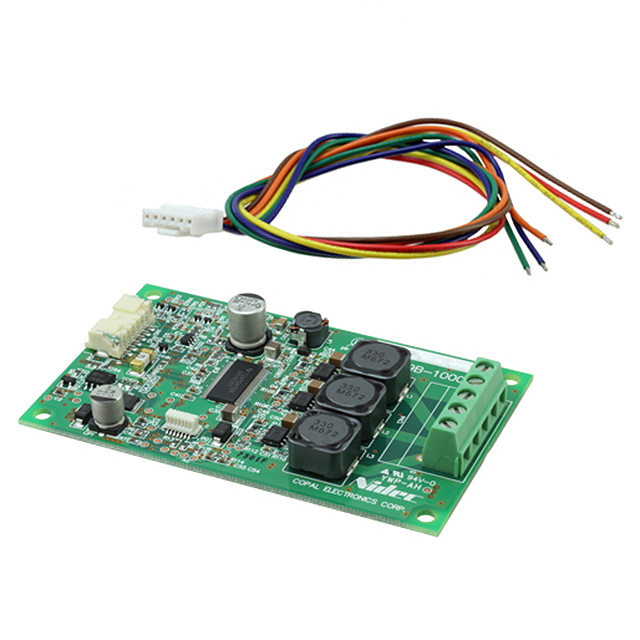

DRIVER AND HARNESS FOR TF029B BL

Search across all available documentation for this part.

Active

Nidec Components Corporation

DRIVER AND HARNESS FOR TF029B BL

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Fan Accessory Type	Width [y]	Voltage - Rated	Weight	Weight	Fan Type	Power (Watts)	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Termination	Bearing Type	Noise	Current Rating (Amps)
Nidec Components Corporation TF029B-1001-D	90 mm	0.295 ft	Driver Kit
Nidec Components Corporation TF029B-1000-F				33.6 mm	24 VDC	0.121 lb	54.88 g	Blower Centrifugal	14.9 W	41.5 mm	Rectangular/Rounded	49.4 mm	0.098 mł/min	3.5 CFM	27 VDC	12	36000 RPM	50 °C	0 °C	0 °C	50 °C	8.03 in H2O	2000 Pa	5 Wire Leads	Aerodynamic	65 dB	0.62 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Driver Kit For TF029 Series
