824-AG31D-ESL-LF

Obsolete

TE Connectivity AMP Connectors

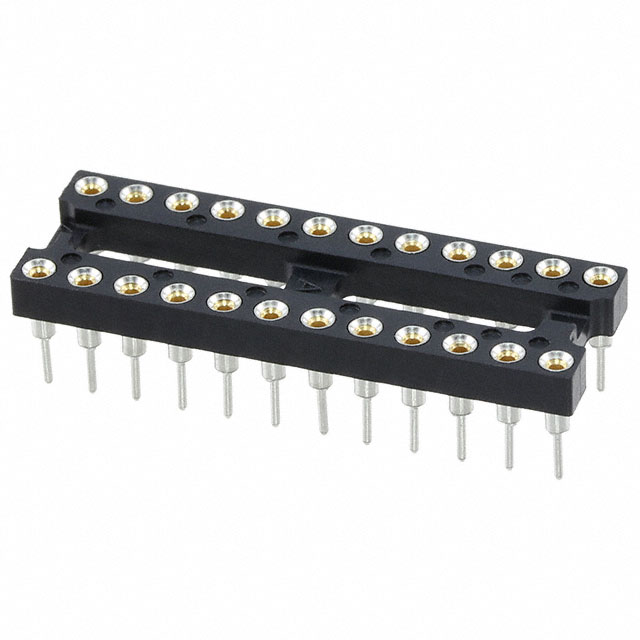

CONN IC DIP SOCKET 24POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

824-AG31D-ESL-LF

Obsolete

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 24POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

824 Series

24 (2 x 12) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	824-AG31D-ESL-LF	824 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Tin-Lead, Gold, Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Finish Thickness - Post	-	2.03 µm
Contact Finish Thickness - Post	-	80 µin
Contact Material - Mating	Beryllium Copper	Copper Alloy, Beryllium Copper
Contact Material - Post	Copper	Copper
Contact Material - Post	-	Copper Alloy
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	-	3 A
Features	Open Frame	Open Frame
Height (Max)	-	49.53 mm
Height (Max)	-	1.95 in
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Length	-	44.45 mm
Length	-	1.75 in
Material - Insulation	-	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0, UL94 V-2
Mounting Type	Through Hole	Through Hole, Direct Mount
Number of Levels	-	1
Number of Positions	-	2
Number of Positions or Pins (Grid)	24	24
Operating Temperature	-	125 °C
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Stripping Length	-	17 mm
Terminal - Width	-	29.2 mm
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Termination Style	-	Tubular Screw
Type	0.3 "	0.3 - 0.6 in
Type	7.62 mm	7.62 - 15.24 mm
Type	DIP	DIP, NEMA Open Construction
Wire Gauge or Range - AWG	-	12 AWG
Wire Gauge or Range - AWG	-	1 aught AWG

824 Series

CONN IC DIP SOCKET 24POS GOLD

Part	Type	Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Housing Material	Termination Post Length	Termination Post Length	Contact Resistance	Material Flammability Rating	Current Rating (Amps)	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Pitch - Mating	Pitch - Mating	Features	Contact Material - Mating	Mounting Type	Contact Finish - Mating	Contact Finish - Post	Contact Material - Post [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material - Insulation	Number of Positions	Length	Length	Number of Levels	Height (Max) [Max]	Height (Max) [Max]	Stripping Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Operating Temperature	Terminal - Width [y]	Contact Finish Thickness - Mating	Contact Material - Post	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 824-AG10D	DIP	0.6 in	15.24 mm	105 ░C	-55 °C	Solder	Polyester	3.18 mm	0.125 in	10 mOhm	UL94 V-0	3 A	2.54 mm	0.1 in	24	0.1 in	2.54 mm	Open Frame	Copper Alloy	Through Hole	Gold
TE Connectivity AMP Connectors 824-AG66D	DIP	0.4 in	10.16 mm	105 ░C	-55 °C	Solder	Polyester	3.18 mm	0.125 in	10 mOhm	UL94 V-0		2.54 mm	0.1 in	24	0.1 in	2.54 mm	Open Frame	Copper Alloy	Through Hole	Gold	Tin-Lead	Copper Alloy	2.03 µm	80 µin
TE Connectivity AMP Connectors 824-AG11D-ES	DIP	0.6 in	15.24 mm	105 ░C	-55 °C	Solder	Polyester	3.18 mm	0.125 in	10 mOhm	UL94 V-0	3 A	2.54 mm	0.1 in	24	0.1 in	2.54 mm	Open Frame	Copper Alloy	Through Hole	Gold	Tin-Lead	Copper Alloy
TE Connectivity AMP Connectors 824-BU	NEMA Open Construction										UL94 V-2									Direct Mount						Nylon, Polyamide (PA)	2	44.45 mm	1.75 in	1	49.53 mm	1.95 in	17 mm	12 AWG	1 aught AWG	Tubular Screw	125 °C	29.2 mm
TE Connectivity AMP Connectors 824-AG31D-ESL-LF	DIP	0.3 "	7.62 mm	105 ░C	-55 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	3.18 mm	0.125 in	10 mOhm	UL94 V-0		2.54 mm	0.1 in	24	0.1 in	2.54 mm	Open Frame	Beryllium Copper	Through Hole	Gold	Gold																	Flash	Copper	Flash
TE Connectivity AMP Connectors 824-AG30D	DIP	0.3 "	7.62 mm	105 ░C	-55 °C	Solder	Polyester	3.18 mm	0.125 in	10 mOhm	UL94 V-0	3 A	2.54 mm	0.1 in	24	0.1 in	2.54 mm	Open Frame	Copper Alloy	Through Hole	Gold
TE Connectivity AMP Connectors 824-AG32D-LF	DIP	0.3 "	7.62 mm	105 ░C	-55 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	3.18 mm	0.125 in	10 mOhm	UL94 V-0		2.54 mm	0.1 in	24	0.1 in	2.54 mm	Open Frame	Beryllium Copper	Through Hole		Tin																		Copper
TE Connectivity AMP Connectors 824-AG11D-ESL-LF	DIP	0.6 in	15.24 mm	105 ░C	-55 °C	Solder	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	3.18 mm	0.125 in	10 mOhm	UL94 V-0		2.54 mm	0.1 in	24	0.1 in	2.54 mm	Open Frame	Beryllium Copper	Through Hole	Gold	Gold																	Flash	Copper	Flash
