155240-2300-RB

Active

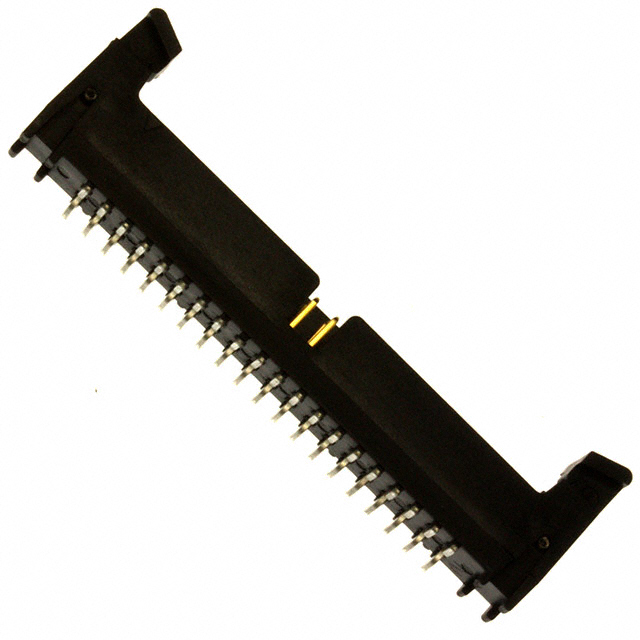

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 40 CONTACTS, SURFACE MOUNT STRAIGHT, 1552 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

155240-2300-RB

Active

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 40 CONTACTS, SURFACE MOUNT STRAIGHT, 1552 SERIES

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155240-2300-RB	155240 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	-	2.84 - 3.94 mm
Contact Length - Post	-	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	0.425 in	0.247 - 0.425 in
Insulation Height	10.8 mm	6.28 - 10.8 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Surface Mount, Through Hole, Right Angle
Number of Positions	40	40
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155240 Series

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE STRAIGHT

Part	Contact Type	Termination	Features	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Current Rating (Amps)	Style	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Shrouding	Contact Finish - Post	Number of Rows	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Material	Insulation Color	Number of Positions
3M 155240-6302-RB	Male Pin	Solder	Keying Slot	2.84 mm	0.112 in	105 ░C	-55 °C	Through Hole	0.079 in	2 mm	Square	1.25 A	Board to Cable/Wire	Header	200 µin	5.08 µm	0.425 in	10.8 mm	0.079 in	2 mm	UL94 V-0	Shrouded - 4 Wall	Tin	2	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Gold	0.15 in	3.81 mm	All	Copper Alloy	Black	40
3M 155240-2300-RB	Male Pin	Solder	Keying Slot			105 ░C	-55 °C	Surface Mount	0.079 in	2 mm	Square	1.25 A	Board to Cable/Wire	Header	200 µin	5.08 µm	0.425 in	10.8 mm	0.079 in	2 mm	UL94 V-0	Shrouded - 4 Wall	Tin	2	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Gold	0.15 in	3.81 mm	All	Copper Alloy	Black	40
3M 155240-6303-RB	Male Pin	Solder	Keying Slot	3.94 mm	0.155 "	105 ░C	-55 °C	Through Hole	0.079 in	2 mm	Square	1.25 A	Board to Cable/Wire	Header	200 µin	5.08 µm	0.425 in	10.8 mm	0.079 in	2 mm	UL94 V-0	Shrouded - 4 Wall	Tin	2	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Gold	0.15 in	3.81 mm	All	Copper Alloy	Black	40
3M 155240-5302-RB	Male Pin	Solder	Keying Slot	2.84 mm	0.112 in	105 ░C	-55 °C	Through Hole, Right Angle	0.079 in	2 mm	Square	1.25 A	Board to Cable/Wire	Header	200 µin	5.08 µm	0.247 in	6.28 mm	0.079 in	2 mm	UL94 V-0	Shrouded - 4 Wall	Tin	2	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Gold	0.15 in	3.81 mm	All	Copper Alloy	Black	40
3M 155240-5303-RB	Male Pin	Solder	Keying Slot	3.94 mm	0.155 "	105 ░C	-55 °C	Through Hole, Right Angle	0.079 in	2 mm	Square	1.25 A	Board to Cable/Wire	Header	200 µin	5.08 µm	0.247 in	6.28 mm	0.079 in	2 mm	UL94 V-0	Shrouded - 4 Wall	Tin	2	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Gold	0.15 in	3.81 mm	All	Copper Alloy	Black	40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.22
		10	$ 15.48
		100	$ 13.16
		500	$ 11.75
Newark	Pack of 100	1	$ 8.55

Description

General part information

155240 Series

Connector Header Surface Mount 40 position 0.079" (2.00mm)
