6280-4SG-318

Active

Conxall/Switchcraft

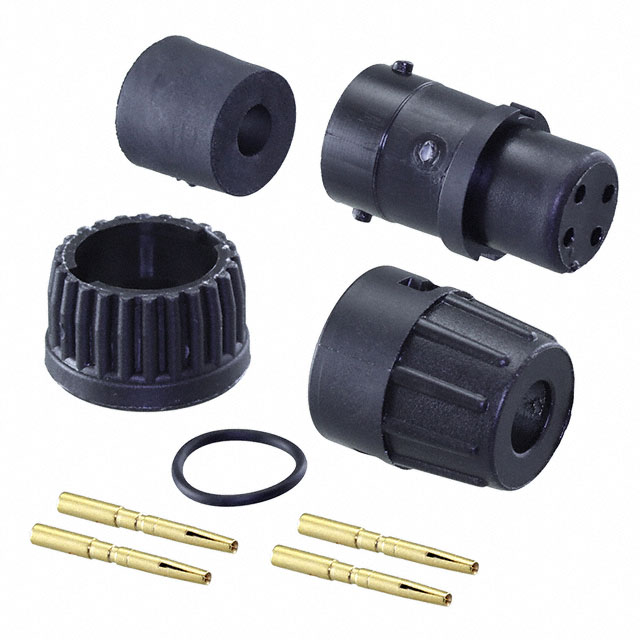

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6280-4SG-318

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6280-4SG-318	6280-4SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	5.33 mm
Cable Opening	-	5.84 mm
Cable Opening	-	0.21 in
Cable Opening	-	0.23 in
Cable Opening [Max] [custom]	0.2 in	0.2 in
Cable Opening [Max] [custom]	5.08 mm	5.08 mm
Cable Opening [Min] [custom]	4.57 mm	4.57 mm
Cable Opening [Min] [custom]	0.18 in	0.18 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6280-4SG Series

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Number of Positions	Fastening Type	Shielding	Primary Material	Current Rating (Amps)	Applications	Backshell Material, Plating	Features	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Orientation	Ingress Protection	Mounting Type	Contact Finish - Mating	Voltage Rating	Connector Type	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 6280-4SG-315	4	Bayonet Lock	Unshielded	Plastic	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Nylon, Polyamide (PA)	Backshell	Brass	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Keyed	Weathertight	Free Hanging (In-Line)	Gold	600 V	Female Sockets, Plug	Crimp	Black	-40 °C	115 °C
Conxall/Switchcraft 6280-4SG-318	4	Bayonet Lock	Unshielded	Plastic	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Nylon, Polyamide (PA)	Backshell	Brass			Keyed	Weathertight	Free Hanging (In-Line)	Gold	600 V	Female Sockets, Plug	Crimp	Black	-40 °C	115 °C	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6280-4SG-321	4	Bayonet Lock	Unshielded	Plastic	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Nylon, Polyamide (PA)	Backshell	Brass			Keyed	Weathertight	Free Hanging (In-Line)	Gold	600 V	Female Sockets, Plug	Crimp	Black	-40 °C	115 °C					5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 6280-4SG-3DC	4	Bayonet Lock	Unshielded	Plastic	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Nylon, Polyamide (PA)	Backshell	Brass			Keyed	Weathertight	Free Hanging (In-Line)	Gold	600 V	Female Sockets, Plug	Crimp	Black	-40 °C	115 °C
