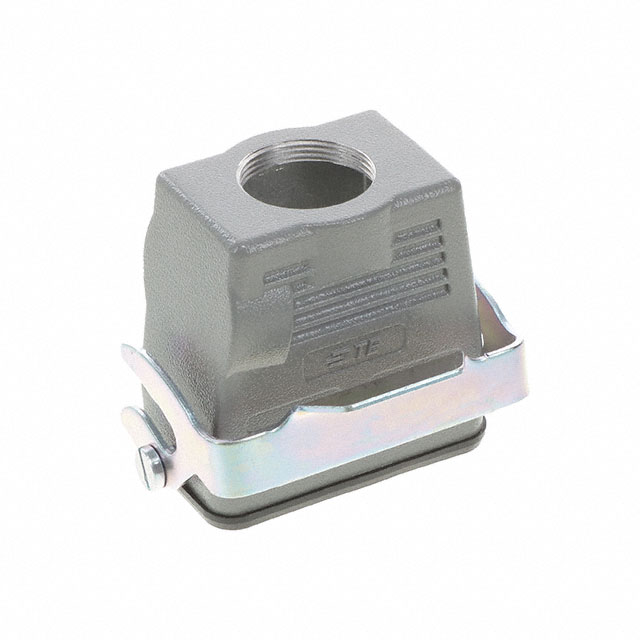

H10B-TBFH-LB-M32
ActiveTE Connectivity AMP Connectors
H10B-TBFH-LB-M32
Deep-Dive with AI
Search across all available documentation for this part.
H10B-TBFH-LB-M32
ActiveTE Connectivity AMP Connectors
H10B-TBFH-LB-M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H10B-TBFH-LB-M32 |
|---|---|
| Connector Type | Hood - Coupling |
| Features | Cable to Cable |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Hood Top |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H10B |
| Size / Dimension [x] | 74.8 mm |
| Size / Dimension [x] | 2.945 in |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [y] | 1.772 " |
| Size / Dimension [z] | 74.5 mm |
| Size / Dimension [z] | 2.933 " |
| Style | Bottom Entry |
| Thread Size | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.78 | |
| 10 | $ 11.54 | |||
| 25 | $ 11.23 | |||
| 50 | $ 10.80 | |||
T1770103132 Series
H10B-TBFH-LB-M32
| Part | Housing Color | Size | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Ingress Protection | Features | Lock Location | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Housing Finish | Style | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H10B-TBFH-LB-M32 | Gray | H10B | Aluminum Alloy, Die Cast | 125 °C | -40 °C | M32 | IP65 - Dust Tight, Water Resistant | Cable to Cable | Locking Clip (1) on Hood Top | 45 mm | 74.5 mm | 1.772 " | 74.8 mm | 2.945 in | 2.933 " | Powder Coated | Bottom Entry | Hood - Coupling |
Description
General part information
T1770103132 Series
Hood - Coupling Connector Bottom Entry M32 H10B IP65 - Dust Tight, Water Resistant
