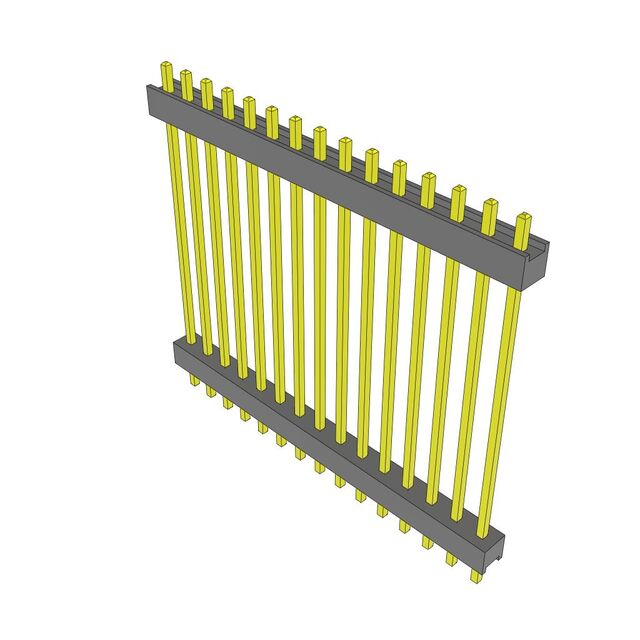

DW-15-19-T-S-1140

Active

Samtec Inc.

CONN HDR 15POS 0.1 STACK T/H TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch DW Datasheet +1

DW-15-19-T-S-1140

Active

Samtec Inc.

CONN HDR 15POS 0.1 STACK T/H TIN

Deep-Dive with AI

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch DW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-15-19-T-S-1140

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin [x]	33.782 mm
Length - Overall Pin [x]	1.33 in
Length - Stack Height [x]	28.956 mm
Length - Stack Height [x]	1.14 in
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

DW-15-19 Series

Part	Length - Stack Height [z]	Length - Stack Height [z]	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Pitch [x]	Pitch [x]	Number of Positions	Termination	Number of Rows	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Row Spacing [x]	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]
Samtec Inc. DW-15-19-G-S-921	23.393 mm	0.921 in	33.782 mm	1.33 in	0.11 in	2.794 mm	Gold	2.54 mm	0.1 in	15	Solder	1	Black	0.25 Ám	10 Áin	Through Hole	0.299 in	7.595 mm
Samtec Inc. DW-15-19-L-D-1005			33.782 mm	1.33 in	0.11 in	2.794 mm	Gold	2.54 mm	0.1 in	30	Solder	2	Black	0.25 Ám	10 Áin	Through Hole	0.215 in	5.791 mm	0.1 in	2.54 mm	25.527 mm	1.005 in
Samtec Inc. DW-15-19-L-D-960			33.782 mm	1.33 in	0.11 in	2.794 mm	Gold	2.54 mm	0.1 in	30	Solder	2	Black	0.25 Ám	10 Áin	Through Hole	0.26 in	6.604 mm	0.1 in	2.54 mm	24.384 mm	0.96 in
Samtec Inc. DW-15-19-T-S-1140			33.782 mm	1.33 in	0.11 in	2.794 mm	Tin	2.54 mm	0.1 in	15	Solder	1	Black			Through Hole					28.956 mm	1.14 in
Samtec Inc. DW-15-19-T-D-1000			33.782 mm	1.33 in	0.11 in	2.794 mm	Tin	2.54 mm	0.1 in	30	Solder	2	Black			Through Hole	0.22 in	5.588 mm	0.1 in	2.54 mm	25.4 mm	1 in
Samtec Inc. DW-15-19-T-D-875			33.782 mm	1.33 in	0.11 in	2.794 mm	Tin	2.54 mm	0.1 in	30	Solder	2	Black			Through Hole	0.345 in	8.763 mm	0.1 in	2.54 mm	22.225 mm	0.875 in
Samtec Inc. DW-15-19-G-S-787			33.782 mm	1.33 in	0.11 in	2.794 mm	Gold	2.54 mm	0.1 in	15	Solder	1	Black	0.25 Ám	10 Áin	Through Hole	0.433 in	11 mm			20 mm	0.787 in
Samtec Inc. DW-15-19-F-D-630			33.782 mm	1.33 in	0.11 in	2.794 mm	Gold	2.54 mm	0.1 in	30	Solder	2	Black	0.076 Ám	3 Áin	Through Hole	0.59 in	14.986 mm	0.1 in	2.54 mm	16.002 mm	0.63 in
Samtec Inc. DW-15-19-G-D-995			33.782 mm	1.33 in	0.11 in	2.794 mm	Gold	2.54 mm	0.1 in	30	Solder	2	Black	0.25 Ám	10 Áin	Through Hole	0.225 in	5.715 mm	0.1 in	2.54 mm	25.273 mm	0.995 in
Samtec Inc. DW-15-19-G-D-1000			33.782 mm	1.33 in	0.11 in	2.794 mm	Gold	2.54 mm	0.1 in	30	Solder	2	Black	0.25 Ám	10 Áin	Through Hole	0.22 in	5.588 mm	0.1 in	2.54 mm	25.4 mm	1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.88

Description

General part information

DW-15-19 Series

15 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole

Documents

Technical documentation and resources

Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

DW Datasheet

Datasheet
