MNU18-187DFIK

Active

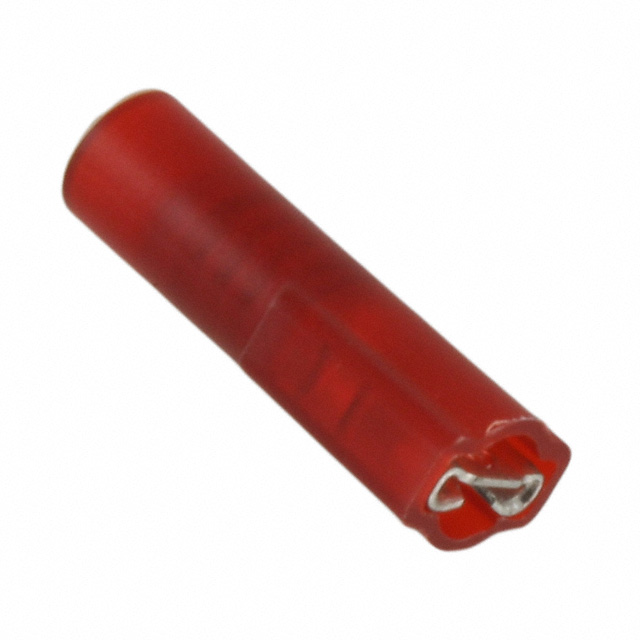

QUICK DISCONNECT TERMINAL, SCOTCHLOK SERIES, FEMALE QUICK DISCONNECT, 4.75MM X 0.51MM

Search across all available documentation for this part.

Active

QUICK DISCONNECT TERMINAL, SCOTCHLOK SERIES, FEMALE QUICK DISCONNECT, 4.75MM X 0.51MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated

Technical documentation and resources

Specification	MNU18-187DFIK	MNU18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	Brass	Brass
Features	Butted Seam	Butted Seam
Gender	Female	Female
Insulation	Fully Insulated	Fully Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall [x]	20.57 mm	20.57 - 22.1 mm
Length - Overall [x]	0.81 in	0.81 - 0.87 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.02 "	0.02 - 0.032 "
Tab Thickness	0.51 mm	0.51 - 0.81 mm
Tab Width	4.75 mm	4.75 - 6.35 mm
Tab Width	0.187 in	0.187 - 0.25 in
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

Part	Length - Overall [x]	Length - Overall [x]	Insulation Diameter	Insulation Diameter [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Tab Thickness	Tab Thickness	Insulation	Terminal Type	Features	Color	Tab Width	Tab Width	Contact Material	Contact Finish	Gender	Termination	Mounting Type
3M MNU18-187DFIK	20.57 mm	0.81 in	3.68 mm	0.145 "	22 AWG	17.5 AWG	0.02 "	0.51 mm	Fully Insulated	Standard	Butted Seam	Red	4.75 mm	0.187 in	Brass	Tin	Female	Crimp	Free Hanging (In-Line)
3M MNU18-250DFIK	22.1 mm	0.87 in	3.68 mm	0.145 "	22 AWG	17.5 AWG	0.032 in	0.81 mm	Fully Insulated	Standard	Butted Seam	Red	6.35 mm	0.25 in	Brass	Tin	Female	Crimp	Free Hanging (In-Line)
3M MNU18-250DFIX-BOTTLE	22.1 mm	0.87 in	3.68 mm	0.145 "	22 AWG	17.5 AWG	0.032 in	0.81 mm	Fully Insulated	Standard	Butted Seam	Red	6.35 mm	0.25 in	Brass	Tin	Female	Crimp	Free Hanging (In-Line)
3M MNU18-187DFIX-BOTTLE	20.57 mm	0.81 in	3.68 mm	0.145 "	22 AWG	17.5 AWG	0.02 "	0.51 mm	Fully Insulated	Standard	Butted Seam	Red	4.75 mm	0.187 in	Brass	Tin	Female	Crimp	Free Hanging (In-Line)
