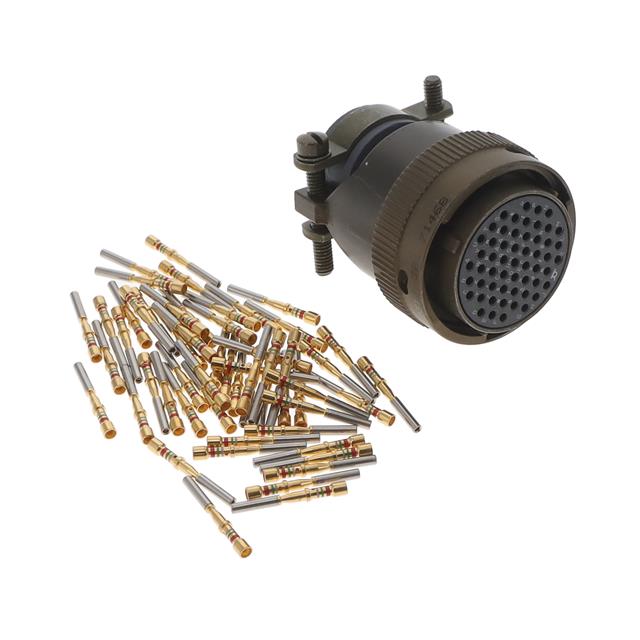

MS3126F22-55S

Active

ITT Cannon, LLC

CONN PLUG 55POS STRAIGHT W/SCKT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG 55POS STRAIGHT W/SCKT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3126F22-55S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	55 positions
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	55
Shell Size - Insert [Min]	22
Termination	Crimp
Voltage Rating	600 VAC, 850 V

Part	Primary Material	Shell Material	Connector Type	Fastening Type	Color	Current Rating (Amps)	Termination	Mounting Type	Shell Finish	Ingress Protection	Features	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish - Mating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
ITT Cannon, LLC MS3126F22-55P	Metal	Aluminum Alloy	Male Pins Plug	Bayonet Lock	Olive Drab	7.5 A	Crimp	Free Hanging (In-Line)	Olive Drab Cadmium	Environment Resistant	Strain Relief	55	22	Gold	N	-55 °C	125 °C	600 VAC 850 V	1.27 µm	50 µin	55 positions
ITT Cannon, LLC MS3126F22-55S	Metal	Aluminum Alloy	Female Sockets Plug	Bayonet Lock	Olive Drab	7.5 A	Crimp	Free Hanging (In-Line)	Olive Drab Cadmium	Environment Resistant	Strain Relief	55	22	Gold	N	-55 °C	125 °C	600 VAC 850 V	1.27 µm	50 µin	55 positions

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

55 Position Circular Connector Plug, Female Sockets Crimp
