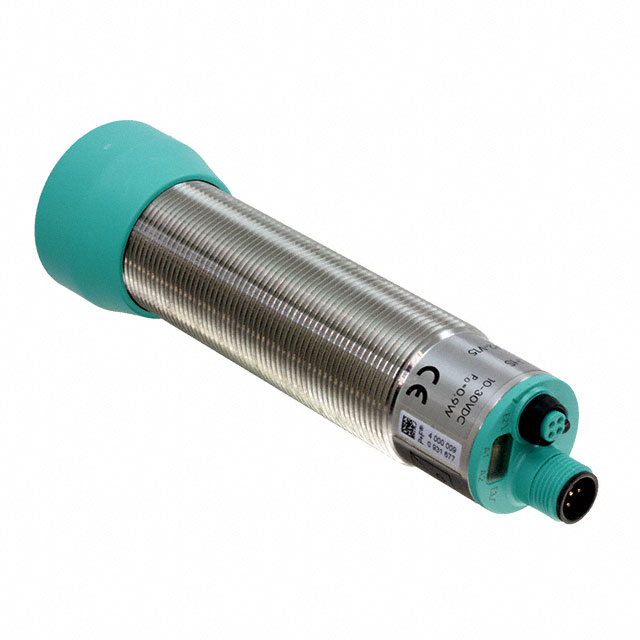

UC4000-30GM-IUR2-V15

Active

PEPPERL+FUCHS

ULTRASONIC PROXIMITY SENSOR, UC4000 SERIES, M30, 4 M, ANALOG OUTPUT, 85 KHZ, 10 TO 30 VDC

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

ULTRASONIC PROXIMITY SENSOR, UC4000 SERIES, M30, 4 M, ANALOG OUTPUT, 85 KHZ, 10 TO 30 VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UC4000-30GM-IUR2-V15	UC4000 Series

Indicator [custom]	LED	LED
Ingress Protection	IP65	IP65, IP67
Material - Body	Stainless Steel	Stainless Steel, Polyamide (PA), Glass Filled
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	Analog Current and Voltage	Analog Current and Voltage, Analog Current
Package / Case	Cylinder, Threaded - M30	Cylinder, Threaded - M30, Module
Sensing Distance [Max]	4000 mm	4000 mm
Sensing Distance [Max]	157.48 "	157.48 "
Sensing Distance [Min]	20 cm	20 cm
Sensing Distance [Min]	7.874 "	7.874 "
Sensor Type	Ultrasonic	Ultrasonic
Shielding	Unshielded	Unshielded
Termination Style	Connector	Connector
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

ULTRASONIC PROXIMITY SENSOR, UC4000 SERIES, M30, 4 M, ANALOG OUTPUT, 85 KHZ, 10 TO 30 VDC

Part	Sensor Type	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Termination Style	Material - Body	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output Type
PEPPERL+FUCHS UC4000-30GM-IUR2-V15	Ultrasonic	LED	30 VDC	10 VDC	IP65	Connector	Stainless Steel	20 cm	7.874 "	4000 mm	157.48 "	Unshielded	70 °C	-25 °C	Cylinder, Threaded - M30	Analog Current and Voltage
PEPPERL+FUCHS UC4000-L2-I-V15	Ultrasonic	LED	30 VDC	10 VDC	IP67	Connector	Polyamide (PA), Glass Filled	20 cm	7.874 "	4000 mm	157.48 "	Unshielded	70 °C	-25 °C	Module	Analog Current

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ULTRASONIC PROXIMITY SENSOR, UC4000 SERIES, M30, 4 M, ANALOG OUTPUT, 85 KHZ, 10 TO 30 VDC

Technical documentation and resources
