1129-6280

Active

Amphenol SV Microwave

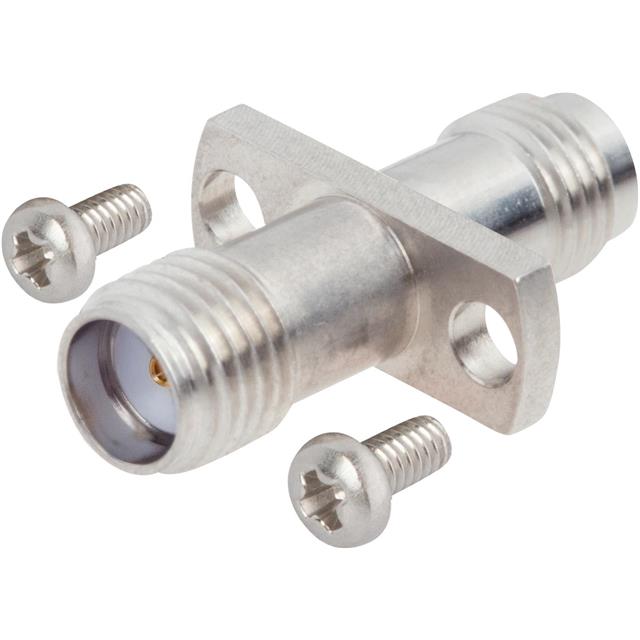

RF / COAXIAL ADAPTER, SMA, JACK, SMA, JACK, STRAIGHT PANEL ADAPTER, 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF / COAXIAL ADAPTER, SMA, JACK, SMA, JACK, STRAIGHT PANEL ADAPTER, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1129-6280

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Style	Conversion Type	Center Contact Plating	Adapter Series	Impedance	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Type	Center Gender	Dielectric Material	Body Material	Center Contact Material	Mounting Feature	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]
Amphenol SV Microwave 1129-6280	Straight	Same Series	Gold	SMA to SMA	50 Ohms	Female Socket SMA Jack	Female Socket SMA Jack	Jack to Jack	Female to Female	Polytetrafluoroethylene (PTFE)	Stainless Steel	Beryllium Copper	Flange	500	-65 ░C	165 °C	18 GHz
Amphenol SV Microwave 1129-6279	Straight	Same Series	Gold	SMA to SMA	50 Ohms	Female Socket SMA Jack	Female Socket SMA Jack	Jack to Jack	Female to Female	Polytetrafluoroethylene (PTFE)	Stainless Steel	Beryllium Copper	Bulkhead	500	-65 ░C	165 °C	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
