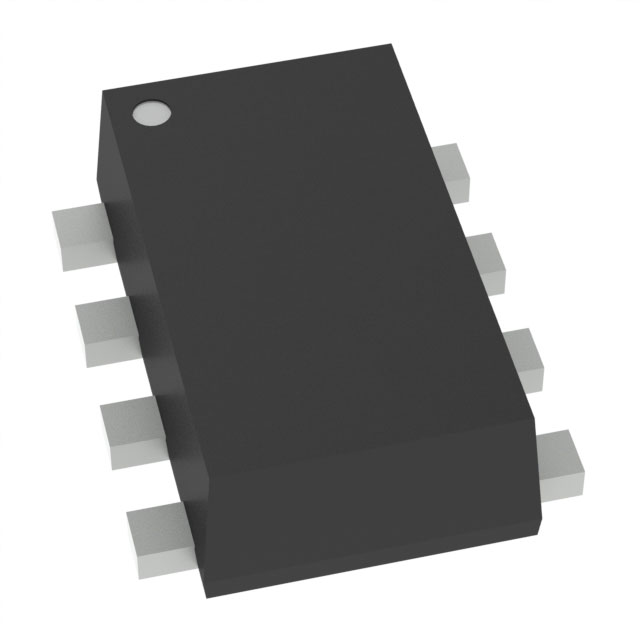

MP2328GTL-Z
ActiveMonolithic Power Systems Inc.
SWITCHING REGULATOR, 2A, 550KHZ SWITCHING FREQ-MAX, PDSO8, SOT-583, 8 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP2328GTL-Z
ActiveMonolithic Power Systems Inc.
SWITCHING REGULATOR, 2A, 550KHZ SWITCHING FREQ-MAX, PDSO8, SOT-583, 8 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MP2328GTL-Z | MP2328 Series |
|---|---|---|
| Current - Output | 2 A | 2 A |
| Frequency - Switching | 450 kHz | 450 kHz |
| Function | Step-Down | Step-Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Package / Case | SOT-583 | SOT-583 |
| Supplier Device Package | SOT-583 | SOT-583 |
| Synchronous Rectifier | True | True |
| Topology | Buck | Buck |
| Voltage - Input (Max) [Max] | 28 V | 28 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output (Max) [Max] | 16 V | 16 V |
| Voltage - Output (Min/Fixed) | 0.5 V | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | N/A | 5000 | $ 0.52 | |
| 10000 | $ 0.46 | |||
| 20000 | $ 0.45 | |||
| 30000 | $ 0.44 | |||
| 40000 | $ 0.44 | |||
| DigiKey | N/A | 1 | $ 1.85 | |
| 10 | $ 1.15 | |||
| 25 | $ 0.96 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.54 | |||
| 2500 | $ 0.48 | |||
| 5000 | $ 0.45 | |||
| 10000 | $ 0.44 | |||
| Digikey | Cut Tape (CT) | 1 | $ 1.04 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.67 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.51 | |||
| 2500 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 1.04 | ||
| 10 | $ 0.75 | |||
| 25 | $ 0.67 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.51 | |||
| 2500 | $ 0.49 | |||
| Tape & Reel (TR) | 5000 | $ 0.48 | ||
| 10000 | $ 0.47 | |||
| 15000 | $ 0.47 | |||
| Future Electronics | N/A | 5000 | $ 0.44 | |
| Mouser Electronics | N/A | 1 | $ 1.17 | |
| 10 | $ 0.99 | |||
| 100 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| 2500 | $ 0.49 | |||
| 5000 | $ 0.47 | |||
| 10000 | $ 0.45 | |||
MP2328 Series
SWITCHING REGULATOR, 2A, 550KHZ SWITCHING FREQ-MAX, PDSO8, SOT-583, 8 PIN
| Part | Output Type | Synchronous Rectifier | Output Configuration | Package / Case | Supplier Device Package | Voltage - Input (Max) [Max] | Topology | Function | Number of Outputs | Current - Output | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Min/Fixed) | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Output (Max) [Max] | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Monolithic Power Systems Inc. MP2328GTL-Z | Adjustable | Positive | SOT-583 | SOT-583 | 28 V | Buck | Step-Down | 1 | 2 A | 125 ¯C | -40 °C | 0.5 V | Surface Mount | 4.5 V | 16 V | 450 kHz | |
Monolithic Power Systems Inc. MP2328CGTL-Z | Adjustable | Positive | SOT-583 | SOT-583 | 28 V | Buck | Step-Down | 1 | 2 A | 125 ¯C | -40 °C | 0.5 V | Surface Mount | 4.5 V | 16 V | 450 kHz |
Description
General part information
MP2328 Series
Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 2A SOT-583
