10140952-102LF

Active

Amphenol ICC (FCI)

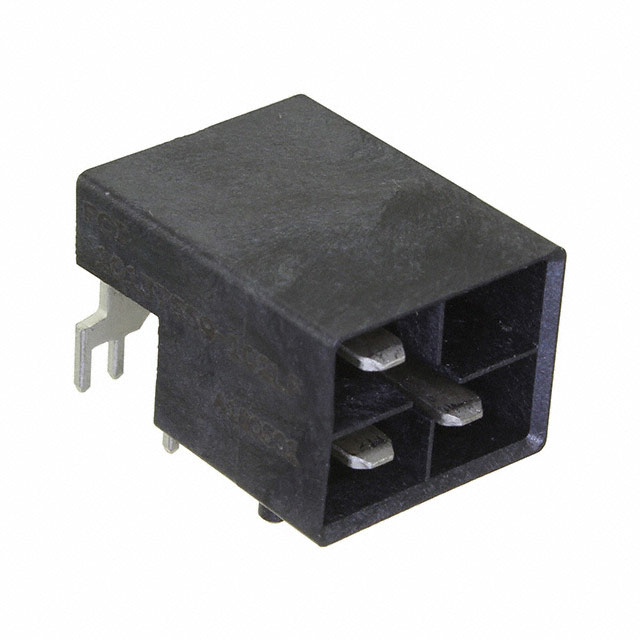

CONN HEADER R/A 4POS 6.3MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER R/A 4POS 6.3MM

Technical Specifications

Parameters and characteristics for this part

Specification	10140952-102LF

Connector Type	Plug
Contact Finish - Post	Tin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	IP67
Insulation Height	0.492 in
Insulation Height	12.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	3
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.248 in
Pitch - Mating	6.3 mm
Row Spacing - Mating	0.224 in
Row Spacing - Mating	5.7 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Termination	Number of Positions Loaded	Number of Rows	Contact Finish - Post	Contact Shape	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Material	Material Flammability Rating	Shrouding	Mounting Type	Features	Connector Type	Pitch - Mating	Pitch - Mating	Style	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Ingress Protection	Contact Length - Post [x]	Contact Length - Post [x]
Amphenol ICC (FCI) 10140952-102LF	Solder	3	2	Tin	Rectangular	4	0.224 in	5.7 mm	Male Blade	Copper Alloy	UL94 V-0	Shrouded - 4 Wall	Through Hole Right Angle	Board Guide	Plug	0.248 in	6.3 mm	Board to Cable/Wire	0.492 in	12.5 mm	85 °C	-55 °C	Latch Holder	7.49 mm	0.295 in	IP67	0.106 in	2.69 mm
