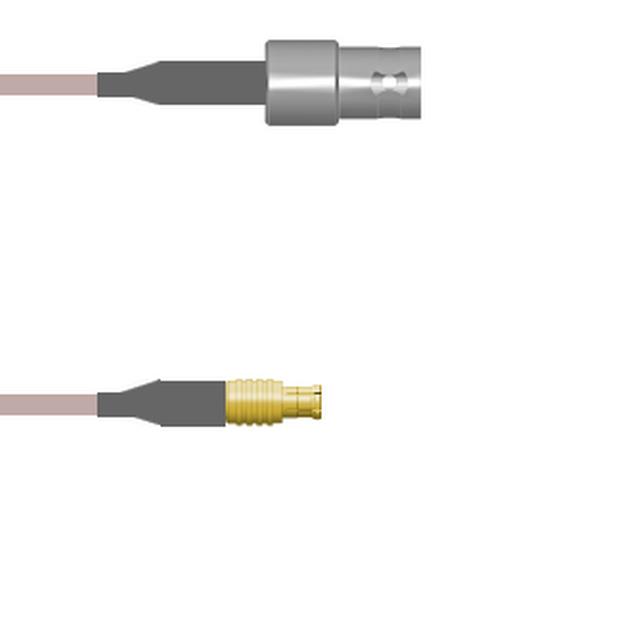

Q-0501C000S036i
ActiveAmphenol Custom Cable
COAX CBL BNC TO MCX 36"
Deep-Dive with AI
Search across all available documentation for this part.
Q-0501C000S036i
ActiveAmphenol Custom Cable
COAX CBL BNC TO MCX 36"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0501C000S036i |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | MCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-179 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Overall Impedance | 75 Ohms |
| Style | BNC to MCX |
Q-0501C0 Series
| Part | Cable Type | 2nd Contact Gender | Features | Color | 1st Contact Gender | 1st Connector | Overall Impedance | 2nd Connector | 1st Connector Mounting Type | Frequency - Max [Max] | 2nd Connector Mounting Type | Style | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | RG-179 | Male | Shielded | Copper | Female | BNC Jack | 75 Ohms | MCX Plug | Free Hanging (In-Line) | 4 GHz | Free Hanging (In-Line) | BNC to MCX | 50 cm | 19.69 " | |
Amphenol Custom Cable | RG-179 | Male | Shielded | Copper | Female | BNC Jack | 75 Ohms | MCX Plug | Free Hanging (In-Line) | 4 GHz | Free Hanging (In-Line) | BNC to MCX | 1 m | 39.4 in | 3.3 ft |
Amphenol Custom Cable | RG-179 | Male | Shielded | Copper | Female | BNC Jack | 75 Ohms | MCX Plug | Free Hanging (In-Line) | 4 GHz | Free Hanging (In-Line) | BNC to MCX | 1.5 m | 5 ' | 5 ft |
Amphenol Custom Cable | RG-179 | Male | Shielded | Copper | Female | BNC Jack | 75 Ohms | MCX Plug | Free Hanging (In-Line) | 4 GHz | Free Hanging (In-Line) | BNC to MCX | 91.44 cm | 36 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 58.86 | |
| 25 | $ 57.70 | |||
| 50 | $ 56.54 | |||
| 100 | $ 55.38 | |||
| 250 | $ 54.22 | |||
Description
General part information
Q-0501C0 Series
Cable Assembly Coaxial BNC to MCX RG-179 36.00" (914.40mm)
Documents
Technical documentation and resources
No documents available
