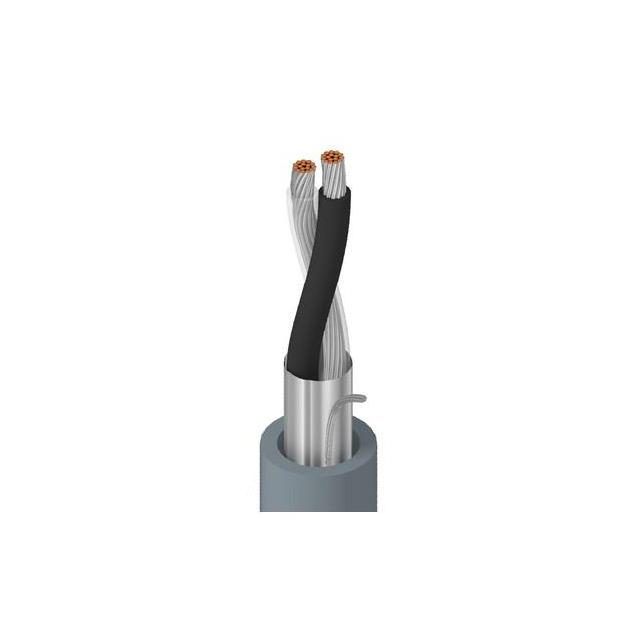

1503A 009U1000

Active

Belden Inc.

2 #22 PVC FS FRPVC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1503A 009U1000

Active

Belden Inc.

2 #22 PVC FS FRPVC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1503A 009U1000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.142 in
Jacket (Insulation) Diameter [diameter]	3.61 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style CMG
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio, Control
Voltage	300 V
Wire Gauge	22 AWG, 18 AWG

1503A Series

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Length	Length	Shield Coverage	Shield Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Jacket (Insulation) Material	Shield Type	Usage	Number of Conductors	Features	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Conductor Material	Cable Type	Ratings
Belden Inc. 1503A N3UU1000	0.142 in	3.61 mm	18 AWG 22 AWG	1000 ft	304.8 m	100 %	Aluminum Polyester	300 V	7	30 AWG	0.02 in	0.508 mm	Green	Poly-Vinyl Chloride (PVC) Riser	Foil	Audio Control	2	Drain Wire	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	UL Style CMG
Belden Inc. 1503A 009U1000	0.142 in	3.61 mm	18 AWG 22 AWG	1000 ft	304.8 m	100 %	Aluminum Polyester	300 V	7	30 AWG	0.02 in	0.508 mm		Poly-Vinyl Chloride (PVC) Riser	Foil	Audio Control	2	Drain Wire	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	UL Style CMG
Belden Inc. 1503A 003U1000	0.142 in	3.61 mm	18 AWG 22 AWG	1000 ft	304.8 m	100 %	Aluminum Polyester	300 V	7	30 AWG	0.02 in	0.508 mm	Orange	Poly-Vinyl Chloride (PVC) Riser	Foil	Audio Control	2	Drain Wire	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	UL Style CMG
Belden Inc. 1503A 004U1000	0.142 in	3.61 mm	18 AWG 22 AWG	1000 ft	304.8 m	100 %	Aluminum Polyester	300 V	7	30 AWG	0.02 in	0.508 mm	Yellow	Poly-Vinyl Chloride (PVC) Riser	Foil	Audio Control	2	Drain Wire	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	UL Style CMG
Belden Inc. 1503A 010U1000	0.142 in	3.61 mm	18 AWG 22 AWG	1000 ft	304.8 m	100 %	Aluminum Polyester	300 V	7	30 AWG	0.02 in	0.508 mm	Black	Poly-Vinyl Chloride (PVC) Riser	Foil	Audio Control	2	Drain Wire	-30 ░C	90 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	UL Style CMG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.50

Description

General part information

1503A Series

2 (1 Pair) Conductor Multi-Conductor Cable White 18 AWG, 22 AWG Foil 1000.0' (304.8m)
