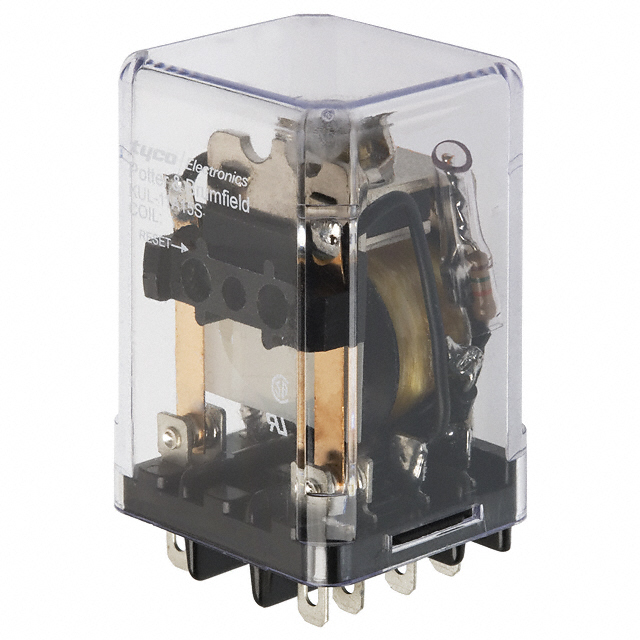

KUL-11A15S-120

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 10A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KUL-11A15S-120

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KUL-11A15S-120

Approval Agency	CSA, UR
Coil Current	32.4 mA
Coil Insulation	Class B
Coil Resistance	3.7 kOhms
Coil Type	Latching, Single Coil
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Load - Max Switching [Max]	2400 VA
Mounting Type	Socketable
Must Operate Voltage	102 VAC
Operate Time	25 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	240 VAC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

KUL-11 Series

Part	Load - Max Switching [Max]	Release Time	Coil Insulation	Coil Type	Contact Rating (Current)	Contact Material	Coil Current	Mounting Type	Contact Form	Operate Time	Relay Type	Coil Resistance	Switching Voltage	Coil Voltage	Approval Agency	Termination Style	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Potter & Brumfield Relays KUL-11A11S-120	2400 VA	25 ms	Class B	Latching Single Coil	5 A	Silver (Ag)	32.4 mA	Socketable	DPDT (2 Form C)	25 ms	General Purpose	3.7 kOhms	240 VAC	120 VAC	CSA UR	Plug In Quick Connect - 0.187" (4.7mm)	102 VAC	-45 °C	70 °C
TE Connectivity Potter & Brumfield Relays KUL-11D15D-24	2400 VA	25 ms	Class B	Latching Dual Coil	10 A	Silver Cadmium Oxide (AgCdO)	68.6 mA	Socketable	DPDT (2 Form C)	25 ms	General Purpose	350 Ohms	240 VAC	24 VDC	CSA UR	Plug In Quick Connect - 0.187" (4.7mm)	18 VDC	-45 °C	50 °C
TE Connectivity Potter & Brumfield Relays KUL-11A15S-240	2400 VA	25 ms	Class B	Latching Single Coil	10 A	Silver Cadmium Oxide (AgCdO)	1.3 mA	Socketable	DPDT (2 Form C)	25 ms	General Purpose	179 kOhms	240 VAC	240 VAC	CSA UR	Plug In Quick Connect - 0.187" (4.7mm)	204 VAC	-45 °C	70 °C
TE Connectivity Potter & Brumfield Relays KUL-11A15S-24	2400 VA	25 ms	Class B	Latching Single Coil	10 A	Silver Cadmium Oxide (AgCdO)	136.4 mA	Socketable	DPDT (2 Form C)	25 ms	General Purpose	176 Ohms	240 VAC	24 VAC	CSA UR	Plug In Quick Connect - 0.187" (4.7mm)		-45 °C	70 °C
TE Connectivity Potter & Brumfield Relays KUL-11A15S-120	2400 VA	25 ms	Class B	Latching Single Coil	10 A	Silver Cadmium Oxide (AgCdO)	32.4 mA	Socketable	DPDT (2 Form C)	25 ms	General Purpose	3.7 kOhms	240 VAC	120 VAC	CSA UR	Plug In Quick Connect - 0.187" (4.7mm)	102 VAC	-45 °C	70 °C
TE Connectivity Potter & Brumfield Relays KUL-11D15D-12	2400 VA	25 ms	Class B	Latching Dual Coil	10 A	Silver Cadmium Oxide (AgCdO)	133.3 mA	Socketable	DPDT (2 Form C)	25 ms	General Purpose	90 Ohms	240 VAC	12 VDC	CSA UR	Plug In Quick Connect - 0.187" (4.7mm)	9 VDC	-45 °C	50 °C
TE Connectivity Potter & Brumfield Relays KUL-11D15S-48	2400 VA	25 ms	Class B	Latching Single Coil	10 A	Silver Cadmium Oxide (AgCdO)	26.7 mA	Socketable	DPDT (2 Form C)	25 ms	General Purpose		240 VAC	48 VDC	CSA UR	Plug In Quick Connect - 0.187" (4.7mm)	36 VDC	-45 °C	70 °C
TE Connectivity Potter & Brumfield Relays KUL-11D15D-110	2400 VA	25 ms	Class B	Latching Dual Coil	10 A	Silver Cadmium Oxide (AgCdO)	14.9 mA	Socketable	DPDT (2 Form C)	25 ms	General Purpose	7.4 kOhms	240 VAC	110 VDC	CSA UR	Plug In Quick Connect - 0.187" (4.7mm)	82.5 VDC	-45 °C	50 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 89.50
		10	$ 84.79
		25	$ 80.08
		50	$ 75.37
		100	$ 70.66

Description

General part information

KUL-11 Series

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
