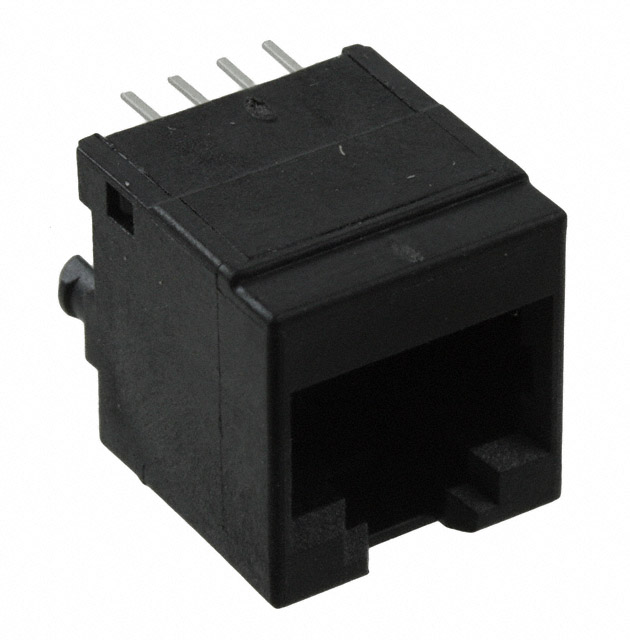

SS-7188V-A-NF

Active

BEL MAGNETIC SOLUTIONS

CONNECTOR, RJ45, JACK, 8P8C, TH

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONNECTOR, RJ45, JACK, 8P8C, TH

Technical Specifications

Parameters and characteristics for this part

Specification	SS-7188V-A-NF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

Part	Shielding	Number of Positions/Contacts	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Finish	Number of Rows	Connector Type	LED Color	Contact Material	Termination	Ratings	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Ports	Orientation	Tab Direction	Features
BEL MAGNETIC SOLUTIONS SS-7188V-A-NF	Unshielded	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Thermoplastic	Gold	1	Jack	Does Not Contain LED	Copper Alloy	Solder	Cat5e	0.76 Ám	30 Áin	Through Hole	1	Vertical	User Selectable
BEL MAGNETIC SOLUTIONS SS-7188VS-A-FLS	Shielded	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Thermoplastic	Gold	1	Jack	Does Not Contain LED	Copper Alloy	Solder	Cat5e	0.76 Ám	30 Áin	Through Hole	1	Vertical	User Selectable	Board Lock Panel Stops

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded Cat5e
