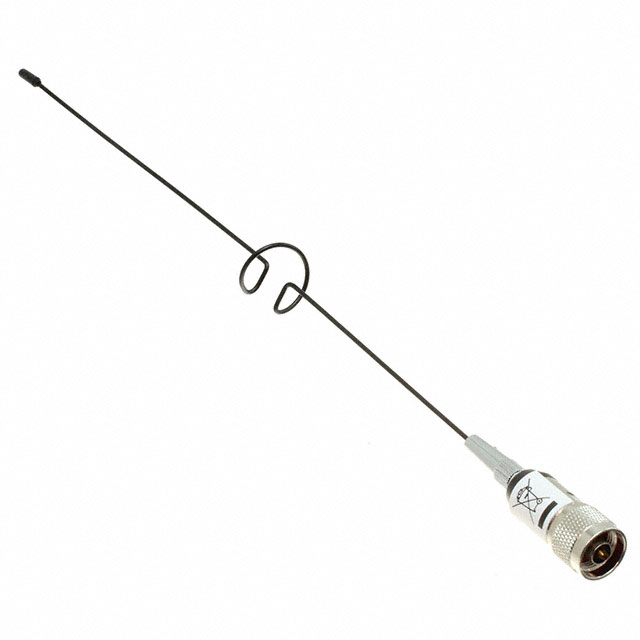

MA9-5N
ActiveTE Connectivity Raychem Cable Protection
RF ANT 900MHZ WHIP STR N FEM 16"
Deep-Dive with AI
Search across all available documentation for this part.
MA9-5N
ActiveTE Connectivity Raychem Cable Protection
RF ANT 900MHZ WHIP STR N FEM 16"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MA9-5N |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 900 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range | 900 MHz |
| Gain | 5.5 dBi |
| Height (Max) [Max] [z] | 16 in |
| Height (Max) [Max] [z] | 406.4 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Termination | N Type Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.45 | |
| 10 | $ 14.11 | |||
| 25 | $ 12.74 | |||
| 100 | $ 11.21 | |||
| 250 | $ 10.47 | |||
| 500 | $ 10.11 | |||
Description
General part information
MA9-5 Series
RF ANTENNA Whip, Straight N Type Female Connector Mount
Documents
Technical documentation and resources
No documents available
