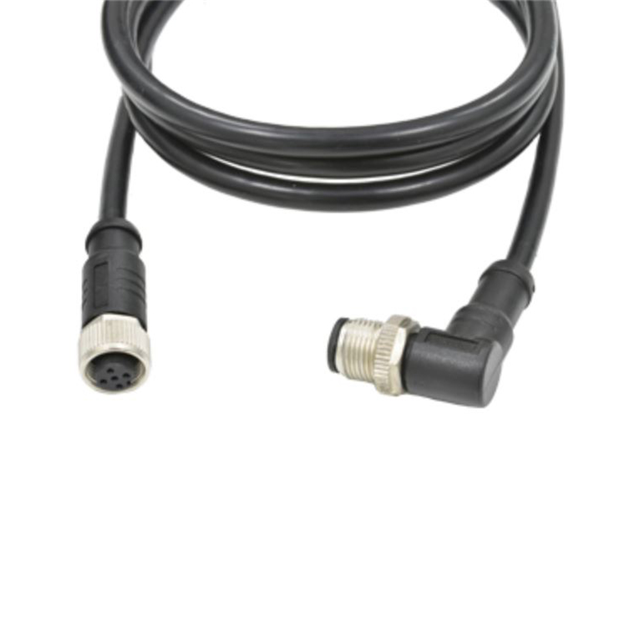

M12A05FL-12AMR-SD001

Active

Amphenol LTW

CBL 5POS MALE TO FMALE 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12A05FL-12AMR-SD001

Active

Amphenol LTW

CBL 5POS MALE TO FMALE 3.28'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A05FL-12AMR-SD001

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

M12A05FL Series

Part	Shielding	2nd Connector Mounting Type	Assembly Configuration	1st Connector Orientation	Usage	2nd Connector Shell Size - Insert	2nd Connector Number of Positions Loaded	1st Connector Type	Color	1st Connector Number of Positions Loaded	Ingress Protection	1st Connector Gender	1st Connector Shell Size - Insert	Cable Type	1st Connector Number of Positions	Length [x]	Length [x]	1st Connector Mounting Type	Cable Material	2nd Connector Type	2nd Connector Gender	2nd Connector Number of Positions
Amphenol LTW M12A05FL-12AFL-SBA05	Unshielded	Free Hanging (In-Line)	Standard	A	Industrial Environments	M12	All	Plug	Black	All	IP68 IP69K	Female Sockets	M12	Round	5	1.64 ft	500 mm	Free Hanging (In-Line)	Polyurethane (PUR)	Plug	Female Sockets	5
Amphenol LTW M12A05FL-12AMR-SBA05	Unshielded	Free Hanging (In-Line)	Standard	A	Industrial Environments	M12	All	Receptacle Right Angle	Black	All	IP68 IP69K	Male Pins	M12	Round	5	1.64 ft	500 mm	Free Hanging (In-Line)	Polyurethane (PUR)	Plug	Female Sockets	5
Amphenol LTW M12A05FL-12AMR-SDA05	Unshielded	Free Hanging (In-Line)	Standard	A	Industrial Environments	M12	All	Receptacle Right Angle	Black	All	IP68 IP69K	Male Pins	M12	Round	5	1.64 ft	500 mm	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Plug	Female Sockets	5
Amphenol LTW M12A05FL-12AFR-SB001	Unshielded	Free Hanging (In-Line)	Standard	A	Industrial Environments	M12	All	Plug Right Angle	Black	All	IP68 IP69K	Female Sockets	M12	Round	5	3.28 ft	1 m	Free Hanging (In-Line)	Polyurethane (PUR)	Plug	Female Sockets	5
Amphenol LTW M12A05FL-12AMR-SD001	Unshielded	Free Hanging (In-Line)	Standard	A	Industrial Environments	M12	All	Receptacle Right Angle	Black	All	IP68 IP69K	Male Pins	M12	Round	5	3.28 ft	1 m	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Plug	Female Sockets	5
Amphenol LTW M12A05FL-12AMR-SB001	Unshielded	Free Hanging (In-Line)	Standard	A	Industrial Environments	M12	All	Receptacle Right Angle	Black	All	IP68 IP69K	Male Pins	M12	Round	5	3.28 ft	1 m	Free Hanging (In-Line)	Polyurethane (PUR)	Plug	Female Sockets	5
Amphenol LTW M12A05FL-12AFL-SB002	Unshielded	Free Hanging (In-Line)	Standard	A	Industrial Environments	M12	All	Plug	Black	All	IP68 IP69K	Female Sockets	M12	Round	5	6.56 ft	2 m	Free Hanging (In-Line)	Polyurethane (PUR)	Plug	Female Sockets	5
Amphenol LTW M12A05FL-12AFL-SD002	Unshielded	Free Hanging (In-Line)	Standard	A	Industrial Environments	M12	All	Plug	Black	All	IP68 IP69K	Female Sockets	M12	Round	5	6.56 ft	2 m	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Plug	Female Sockets	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.60
		10	$ 12.94

Description

General part information

M12A05FL Series

Circular Cable Assembly Unshielded 3.28' (1.00m)
