45-290Z.1000.113

Active

EAO

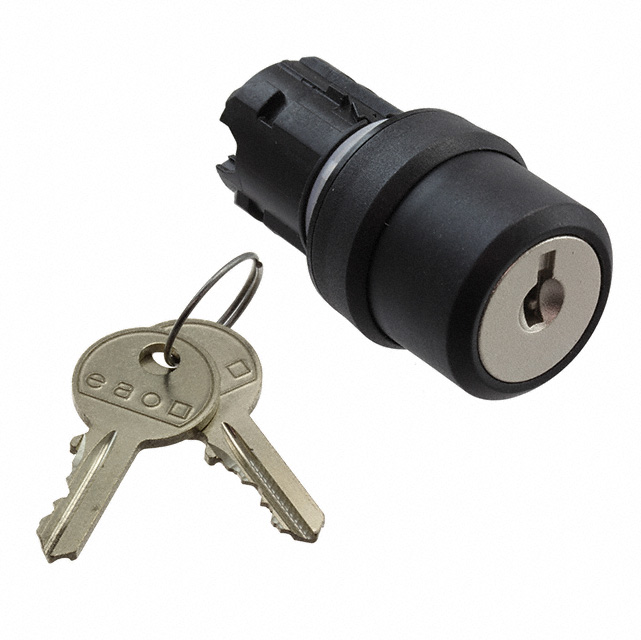

KEYLOCK SWITCH ACTUATOR 3 POSITIONS MOMENTARY-REST(A)-MOMENTARY 45? FRONT/HOUSING PLASTIC

Search across all available documentation for this part.

Active

EAO

KEYLOCK SWITCH ACTUATOR 3 POSITIONS MOMENTARY-REST(A)-MOMENTARY 45? FRONT/HOUSING PLASTIC

Technical Specifications

Parameters and characteristics for this part

Specification	45-290Z.1000.113

(Select First, Then Apply Filters) Compatible Series	45, EAO
Actuator Type	Keylock
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Contact Block(s)
Type	Momentary

KEYLOCK SWITCH ACTUATOR 3 POSITIONS MOMENTARY-REST(A)-MOMENTARY 45? FRONT/HOUSING PLASTIC

Part	Type	Actuator Type	Requires	Illumination	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions
EAO 45-290Z.1000.113	Momentary	Keylock	Contact Block(s)	Non-Illuminated	45, EAO	22.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Keylock Non-Illuminated
