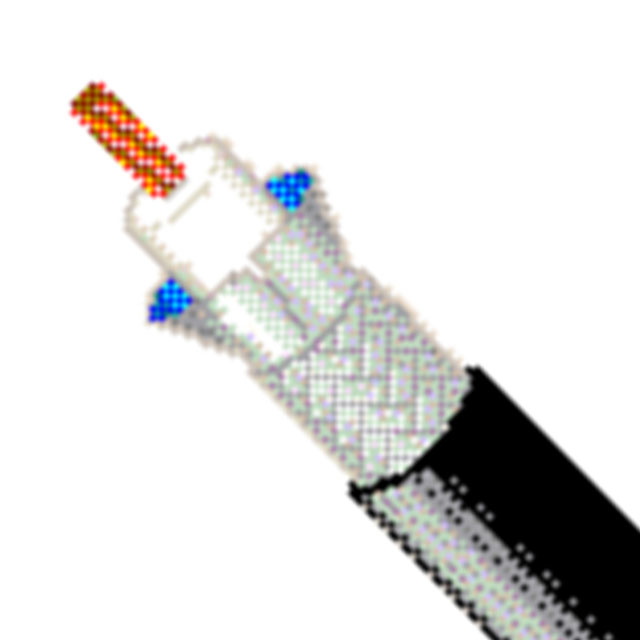

1865A 0081000

Obsolete

Belden Inc.

#25 GIFHDPE SH FR PVC

Search across all available documentation for this part.

Obsolete

Belden Inc.

#25 GIFHDPE SH FR PVC

Technical Specifications

Parameters and characteristics for this part

Specification	1865A 0081000

Cable Type	Coaxial - Riser
Conductor Material	Copper, Bare
Conductor Strand [custom]	37 AWG
Conductor Strand [custom]	19 Strands
Dielectric Diameter [diameter]	0.094 in
Dielectric Diameter [diameter]	2.39 mm
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	3.81 mm
Jacket (Insulation) Diameter [diameter]	0.15 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
VoP, Velocity of Propagation	82
Wire Gauge	25 AWG

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Conductor Material	Length	Length	Cable Type	Shield Type	Wire Gauge	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance	VoP, Velocity of Propagation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material
Belden Inc. 1865A 0061000	Blue	37 AWG	19 Strands	95 % 100 %	Copper Bare	304.8 m	1000 ft	Coaxial - Riser	Braid Foil	25 AWG	0.094 in	2.39 mm	75 Ohms	82	-30 ░C	75 ░C	Poly-Vinyl Chloride (PVC)	3.81 mm	0.15 in	Aluminum Polyester Copper Tinned
Belden Inc. 1865A 0031000	Orange	37 AWG	19 Strands	95 % 100 %	Copper Bare	304.8 m	1000 ft	Coaxial - Riser	Braid Foil	25 AWG	0.094 in	2.39 mm	75 Ohms	82	-30 ░C	75 ░C	Poly-Vinyl Chloride (PVC)	3.81 mm	0.15 in	Aluminum Polyester Copper Tinned
Belden Inc. 1865A 0081000	Gray	37 AWG	19 Strands	95 % 100 %	Copper Bare	304.8 m	1000 ft	Coaxial - Riser	Braid Foil	25 AWG	0.094 in	2.39 mm	75 Ohms	82	-30 ░C	75 ░C	Poly-Vinyl Chloride (PVC)	3.81 mm	0.15 in	Aluminum Polyester Copper Tinned
Belden Inc. 1865A 0091000		37 AWG	19 Strands	95 % 100 %	Copper Bare	304.8 m	1000 ft	Coaxial - Riser	Braid Foil	25 AWG	0.094 in	2.39 mm	75 Ohms	82	-30 ░C	75 ░C	Poly-Vinyl Chloride (PVC)	3.81 mm	0.15 in	Aluminum Polyester Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Riser Cable 25 AWG 1000.0' (304.80m) 75 Ohms
