STEVAL-ILL003V1

Obsolete

STMicroelectronics

EVAL BOARD FOR STP16CP596

Search across all available documentation for this part.

Obsolete

STMicroelectronics

EVAL BOARD FOR STP16CP596

Technical Specifications

Parameters and characteristics for this part

Part	Frequency	Voltage - Supply (Max)	Voltage - Supply (Min) [Min]	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Outputs	Internal Switch(s)	Supplier Device Package	Type	Topology	Package / Case [custom]	Package / Case	Package / Case [custom]	Current - Output / Channel	Supplied Contents	Utilized IC / Part	Features	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]
STMicroelectronics STP16CP596M	25 MHz	5.5 V	3 V	16 V	-40 °C	125 °C	Surface Mount	16		24-SO	Linear	Shift Register	7.5 mm	24-SOIC	0.295 in	50 mA
STMicroelectronics STEVAL-ILL003V1				4 V												50 mA	Board(s)	STP16CP596	Dimmable	32 Non-Isolated Outputs	35 V	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

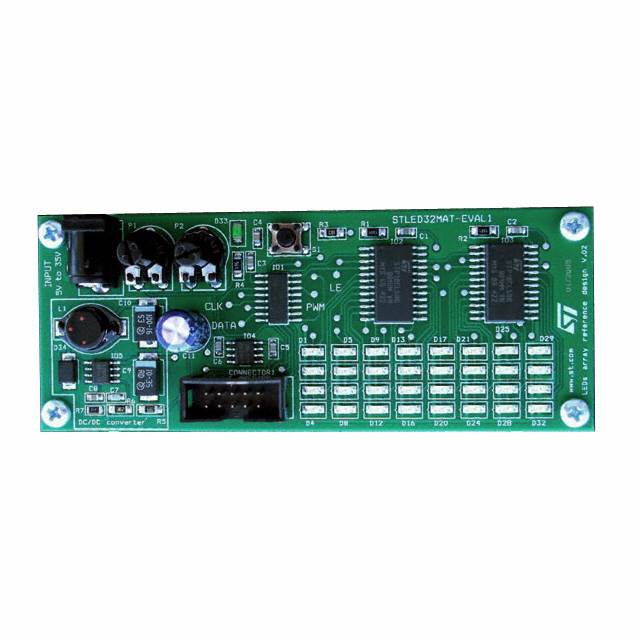

STP16CP596 - 32 Non-Isolated Outputs Dimmable LED Driver Evaluation Board
