EN3C9M26SX

Active

Switchcraft Inc.

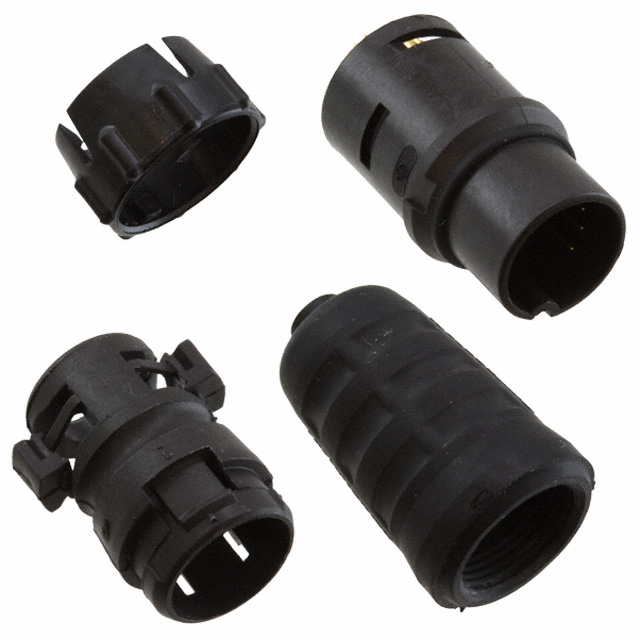

CONN PLUG MALE 9P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE 9P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C9M26SX	EN3C9M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A	3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	9	9
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	250 VAC	250 VAC

CONN PLUG MALE 9P GOLD SLDR CUP

Part	Features	Contact Material	Mounting Type	Backshell Material, Plating	Voltage Rating	Fastening Type	Connector Type	Color	Ingress Protection	Insert Material	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Positions	Contact Finish - Mating	Shielding	Orientation	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]
Switchcraft Inc. EN3C9M26SX	Backshell, Cable Clamp, Coupling Nut	Copper Alloy	Free Hanging (In-Line)	Thermoplastic	250 VAC	Bayonet Lock	Male Pins, Plug	Black	IP66/IP68	Elastomer	UL94 V-0	3 A	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	9	Gold	Unshielded	Keyed	Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in
Switchcraft Inc. EN3C9M26X	Backshell, Cable Clamp, Coupling Nut	Copper Alloy	Free Hanging (In-Line)	Thermoplastic	250 VAC	Bayonet Lock	Male Pins, Plug	Black	IP66/IP68	Elastomer	UL94 V-0	3 A	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	9	Gold	Unshielded	Keyed	Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug, Male Pins Solder Cup
