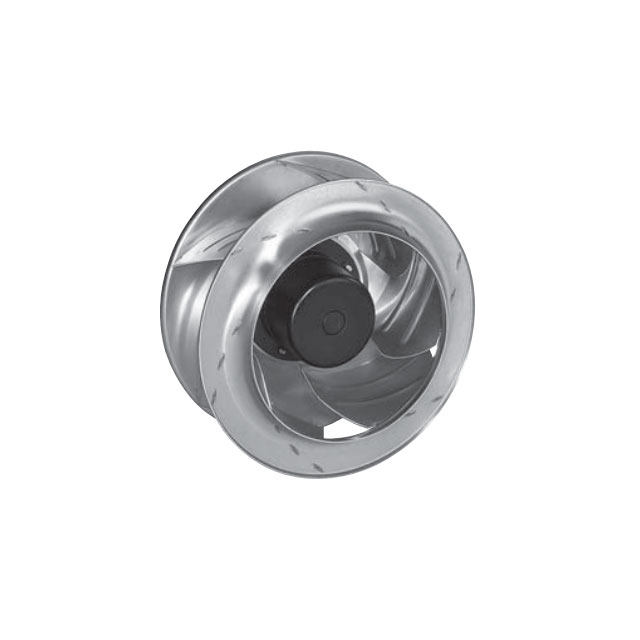

R3G310-AL09-30

Obsolete

ebm-papst Inc.

FAN IMP MTRZD 318X150.0MM 48VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R3G310-AL09-30

Obsolete

ebm-papst Inc.

FAN IMP MTRZD 318X150.0MM 48VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R3G310-AL09-30

Air Flow	913 CFM
Air Flow	25.56 m³/min
Approval Agency	EAC, CCC, UL, CSA, CE
Bearing Type	Ball
Current Rating (Amps)	4.35 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control, Thermal Overload Protector (TOP)
Ingress Protection	IP42
Material - Blade	Aluminum
Material - Frame	Aluminum
Noise	67 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	208 W
RPM	1930 RPM
Size / Dimension	Round
Size / Dimension [diameter]	318 mm
Termination	4 Wire Leads with Ferrules
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	57 VDC
Voltage Range [Min]	36 VDC
Width	150 mm

R3G310 Series

Part	Size / Dimension	Size / Dimension [diameter]	Voltage - Rated	Termination	RPM	Features	Fan Type	Current Rating (Amps)	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Ingress Protection	Material - Frame	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Air Flow	Air Flow	Static Pressure	Static Pressure	Width [y]	Material - Blade	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated [custom]	Width
ebm-papst Inc. R3G310-AX54-21	Round	360 mm	230 VAC	Terminal Block	2850 RPM	Alarm Electronic Commutation (EC) PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	Motorized Impellers	5.6 A	1270 W	277 VAC	200 VAC	IP54 - Dust Protected Water Resistant	Aluminum	Ball	-25 °C	60 °C	CE EAC UL	1643.3 CFM	46.01 m³/min	3.625 in H2O	903 Pa	269.2 mm	Aluminum
ebm-papst Inc. R3G310-RS01-I1			230 VAC	5 Wire Leads	2640 RPM	PWM Control Thermal Overload Protector (TOP)	Motorized Impellers	3.2 A	730 W	277 VAC	200 VAC	IP54 - Dust Protected Water Resistant	Aluminum	Ball	-25 °C	60 °C	CCC CSA EAC UL	1418.5 CFM	39.72 m³/min	2.653 in H2O	661 Pa		Plastic	75 dB(A)
ebm-papst Inc. R3G310-AZ88-03	Round	360 mm	460 VAC	Terminal Block	4100 RPM	Electronic Commutation (EC) PWM Control	Motorized Impellers	4.3 A	3240 W	480 VAC	380 VAC	IP54 - Dust Protected Water Resistant	Aluminum	Ball	-25 °C	40 °C	UL	3667 CFM	102.68 m³/min			289.5 mm	Aluminum	91 dB(A)	40 °C	-25 °C
ebm-papst Inc. R3G310-AL09-30	Round	318 mm		4 Wire Leads with Ferrules	1930 RPM	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	Motorized Impellers	4.35 A	208 W	57 VDC	36 VDC	IP42	Aluminum	Ball	-25 °C	60 °C	CCC CE CSA EAC UL	913 CFM	25.56 m³/min				Aluminum	67 dB			48 VDC	150 mm
ebm-papst Inc. R3G310-AY73-13	Round	350 mm	230 VAC	Terminal Block	3900 RPM	Electronic Commutation (EC) PWM Control	Motorized Impellers	7.4 A	2680 W			IP54 - Dust Protected Water Resistant	Aluminum		-25 °C	40 °C	UL	3243 CFM	90.8 m³/min			289.5 mm	Aluminum	90 dB(A)	40 °C	-25 °C
ebm-papst Inc. R3G310-AN12-30	Round	318 mm		4 Wire Leads with Ferrules	2000 RPM	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	Motorized Impellers	4 A		57 VDC	36 VDC	IP42	Aluminum	Ball	-25 °C	60 °C	CCC CE CSA EAC UL	753.9 CFM	21.11 m³/min				Aluminum	71 dB(A)			48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

R3G310 Series

Fan Motorized Impellers 48VDC Round - 318mm Dia Ball 913.0 CFM (25.56m³/min) 4 Wire Leads with Ferrules
