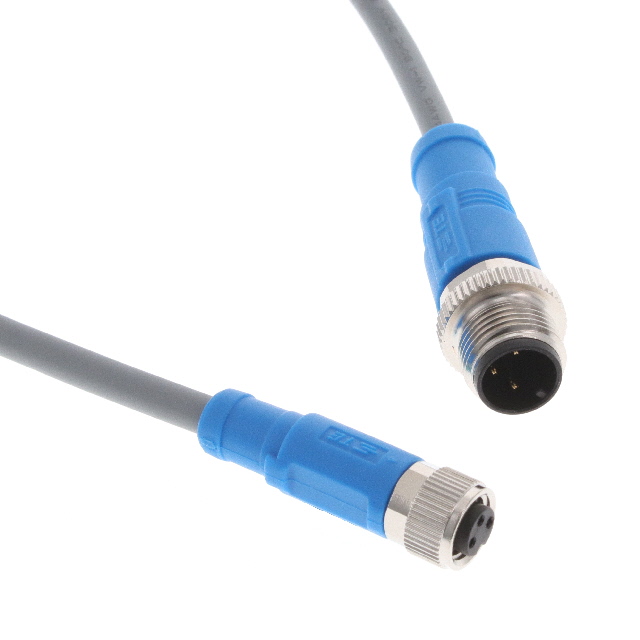

CBL 5POS MALE TO FMALE 3.28'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4052325003-002
ActiveTE Connectivity AMP Connectors
CBL 5POS MALE TO FMALE 3.28'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4052325003-002 | T40523 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 | 3 - 5 |
| 1st Connector Number of Positions Loaded | 3 | 3 |
| 1st Connector Number of Positions Loaded | - | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle | Receptacle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 3 | 3 |
| 2nd Connector Number of Positions Loaded | All | All |
| 2nd Connector Shell Size - Insert | M8 | M12, M8 |
| 2nd Connector Type | Plug | Plug |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Gray | Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length [x] | 1 m | 1 - 500 mm |
| Length [x] | 3.28 ft | 1.64 - 3.28 ft |
| Shielding | Unshielded | Unshielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.44 | |
| 10 | $ 15.11 | |||
| 30 | $ 14.71 | |||
| 50 | $ 13.99 | |||
| 100 | $ 12.62 | |||
| 250 | $ 12.54 | |||
| 500 | $ 10.93 | |||
T40523 Series
CBL CIRC
| Part | Cable Type | 1st Connector Orientation | 2nd Connector Gender | Shielding | Cable Material | 2nd Connector Shell Size - Insert | 2nd Connector Type | 1st Connector Number of Positions | 2nd Connector Mounting Type | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Type | Assembly Configuration | Color | 1st Connector Gender | 2nd Connector Number of Positions Loaded | Length [x] | Length [x] | 2nd Connector Number of Positions | 1st Connector Mounting Type | Ingress Protection | Usage | 1st Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4052325003-001 | Round | A | Female Sockets | Unshielded | Polyurethane (PUR) | M12 | Plug | 3 | Free Hanging (In-Line) | All | M12 | Receptacle | Standard | Gray | Male Pins | All | 1.64 ft | 500 mm | 3 | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors T4052325003-002 | Round | A | Female Sockets | Unshielded | Polyurethane (PUR) | M8 | Plug | 5 | Free Hanging (In-Line) | M12 | Receptacle | Standard | Gray | Male Pins | All | 3.28 ft | 1 m | 3 | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | Industrial Environments | 3 |
Description
General part information
T40523 Series
Circular Cable Assembly Unshielded 3.28' (1.00m)
