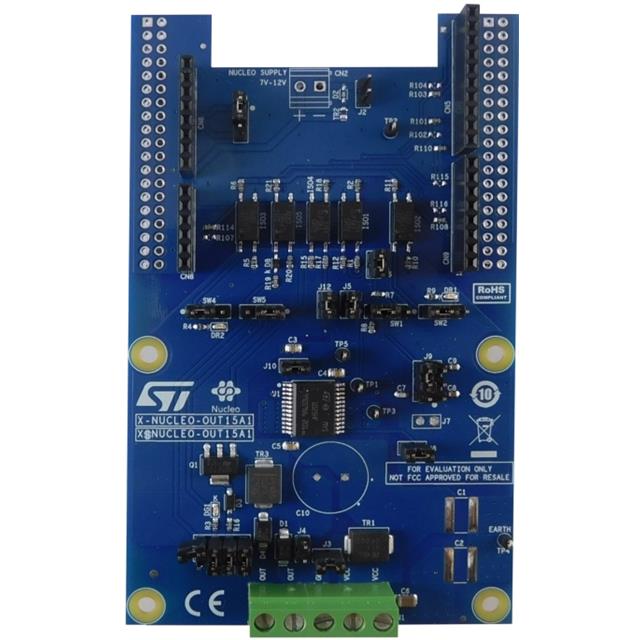

X-NUCLEO-OUT15A1
ActiveINDUSTRIAL DIGITAL OUTPUT EXPANSION BOARD BASED ON IPS1025HF FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-OUT15A1
ActiveINDUSTRIAL DIGITAL OUTPUT EXPANSION BOARD BASED ON IPS1025HF FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X-NUCLEO-OUT15A1 |
|---|---|
| Contents | Board(s) |
| Function | Driver |
| Interconnect System | ST Morpho, Arduino R3 Shield |
| Platform | Nucleo |
| Suggested Programming Environment | STM32Cube |
| Type | Power Management |
| Utilized IC / Part | IPS1025HF |
X-NUCLEO-OUT15A1 Series
High efficiency, high-side switch with extended diagnostics, smart driving for capacitive loads and short propagation delay at power-on
| Part | Rds On (Typ) | Mounting Type | Number of Outputs | Switch Type | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Output Configuration | Fault Protection | Interface | Package / Case [y] | Package / Case | Package / Case [y] | Current - Output (Max) [Max] | Ratio - Input:Output [custom] | Output Type | Supplier Device Package | Input Type | Type | Platform | Suggested Programming Environment | Utilized IC / Part | Function | Contents | Interconnect System | Voltage - Load [Max] | Voltage - Load [Min] | Voltage - Supply (Vcc/Vdd) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | 12 mOhm | Surface Mount | 1 | General Purpose | 8 V | 60 V | High Side | Current Limiting (Adjustable) Open Load Detect Over Temperature Reverse Current UVLO | Logic | 7.5 mm | 24-PowerBSOP | 0.295 in | 5 A | 1:1 | N-Channel | PowerSSO-24 | Non-Inverting | ||||||||||
STMicroelectronics | 12 mOhm | Surface Mount | 1 | General Purpose | 8 V | 60 V | High Side | Current Limiting (Adjustable) Open Load Detect Over Temperature Reverse Current UVLO | Logic | 7.5 mm | 24-PowerBSOP | 0.295 in | 5 A | 1:1 | N-Channel | PowerSSO-24 | Non-Inverting | ||||||||||
STMicroelectronics | 12 mOhm | Surface Mount | 1 | General Purpose | 8 V | 60 V | High Side | Current Limiting (Adjustable) Open Load Detect Over Temperature Reverse Current UVLO | Logic | 7.5 mm | 24-PowerBSOP | 0.295 in | 5 A | 1:1 | N-Channel | PowerSSO-24 | Non-Inverting | ||||||||||
STMicroelectronics | Power Management | Nucleo | STM32Cube | IPS1025H | Driver | Board(s) | Arduino R3 Shield ST Morpho | ||||||||||||||||||||
STMicroelectronics | Power Management | Nucleo | STM32Cube | IPS1025HF | Driver | Board(s) | Arduino R3 Shield ST Morpho | ||||||||||||||||||||
STMicroelectronics | 12 mOhm | Surface Mount | 1 | General Purpose | High Side | Current Limiting (Fixed) Over Load Over Temperature UVLO | Logic | 48-VFQFN Exposed Pad | 2.4 A | 1:1 | N-Channel | 48-QFN (8x6) | Non-Inverting | 60 V | 8.65 V | ||||||||||||
STMicroelectronics | Power Management | Nucleo | STM32Cube | IPS1025H-32 | Driver | Board(s) | Arduino R3 Shield ST Morpho | ||||||||||||||||||||
STMicroelectronics | 12 mOhm | Surface Mount | 1 | General Purpose | 8.65 V | 60 V | High Side | Current Limiting (Fixed) Over Temperature Over Voltage Short Circuit UVLO | On/Off | 7.5 mm | 24-PowerBSOP | 0.295 in | 1:1 | N-Channel | PowerSSO-24 | Non-Inverting | |||||||||||
STMicroelectronics | Power Management | Nucleo | STM32Cube | IPS1025HF | Driver | Board(s) | Arduino R3 Shield ST Morpho |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.00 | |
Description
General part information
X-NUCLEO-OUT15A1 Series
The IPS1025HF and IPS1025HFQ are single high-side switch ICs able to drive capacitive, resistive or inductive loads with one side connected to ground.
The 60 V operating range and RDS-ON = 12 mΩ (typ.), combined with the extended diagnostic (Over Load, Over-temperature) and the < 60 us propagation delay time at startup (enabling Class 3 for interface types C and D), make the IC suitable for applications implementing the proper architectures to address higher SIL levels.
The very low RDS-ON (≤ 25 mΩ up to TJ = 125 °C) makes the IC suitable for the applications with up to 2.4 A steady state operating current.
