M80-4800805

Active

Harwin Inc.

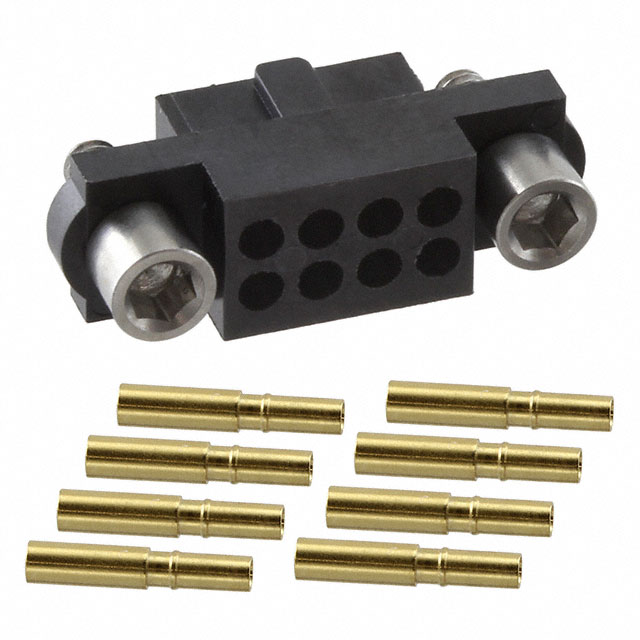

4+4 POS. FEMALE DIL 22AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80, M83 Series Spec Sheet +1

M80-4800805

Active

Harwin Inc.

4+4 POS. FEMALE DIL 22AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M80, M83 Series Spec Sheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4800805

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	22 AWG
Wire Type	Discrete

M80-480 Series

Part	Features	Row Spacing	Row Spacing	Wire Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Color	Number of Positions	Contact Finish	Wire Gauge	Contact Type	Connector Type	Cable Termination
Harwin Inc. M80-4800405	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	4	Gold	22 AWG	Female Socket	Receptacle	Crimp
Harwin Inc. M80-4803242	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black		Gold	22 AWG	Female Socket	Receptacle	Crimp
Harwin Inc. M80-4803042	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	30	Gold	22 AWG	Female Socket	Receptacle	Crimp
Harwin Inc. M80-4803442	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	34	Gold	22 AWG	Female Socket	Receptacle	Crimp
Harwin Inc. M80-4802042	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	20	Gold	22 AWG	Female Socket	Receptacle	Crimp
Harwin Inc. M80-4803405	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	34	Gold	22 AWG	Female Socket	Receptacle	Crimp
Harwin Inc. M80-4804605	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	46	Gold	22 AWG	Female Socket	Receptacle	Crimp
Harwin Inc. M80-4804205	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	42	Gold	22 AWG	Female Socket	Receptacle	Crimp
Harwin Inc. M80-4801442	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	14	Gold	22 AWG	Female Socket	Receptacle	Crimp
Harwin Inc. M80-4800805	Jackscrews	2 mm	0.079 in	Discrete	0.079 in	2 mm	2	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	Black	8	Gold	22 AWG	Female Socket	Receptacle	Crimp
