3138-4-00-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.

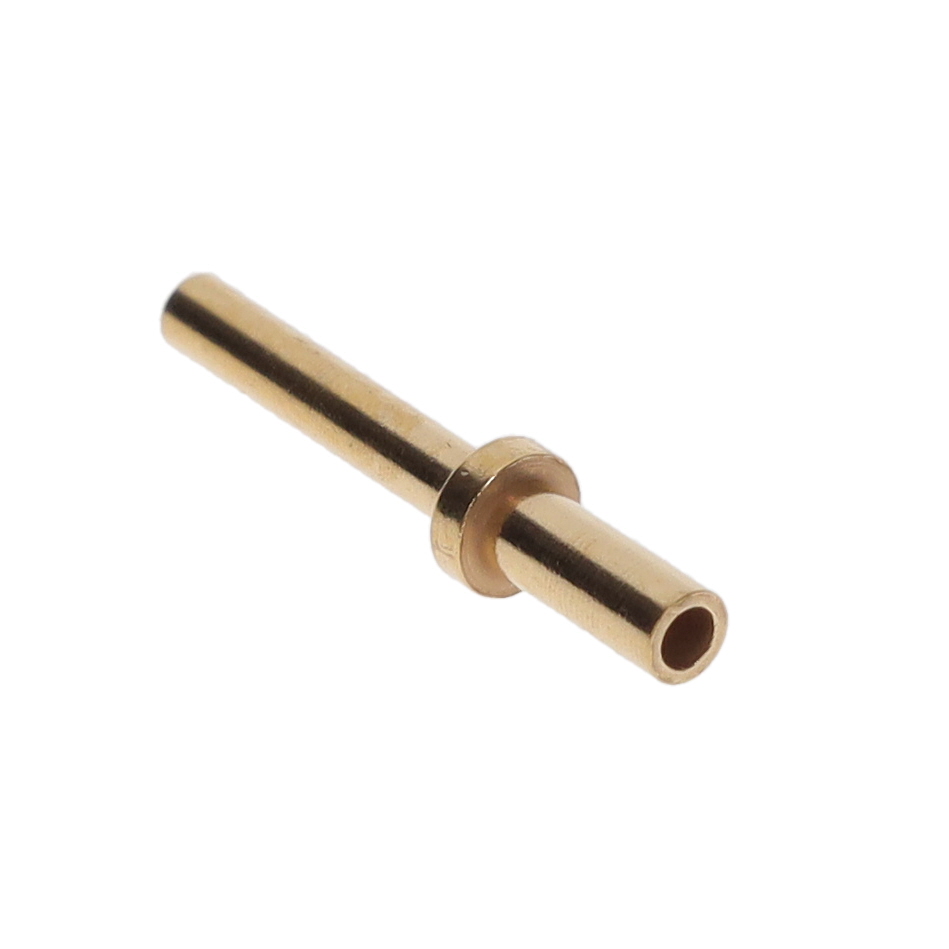

CONN PC PIN CIRC .050DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3138-4-00-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .050DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3138-4-00-34-00-00-08-0 |
|---|---|
| Board Thickness | 3.18 mm |
| Board Thickness | 0.125 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.39 mm |
| Flange Diameter [diameter] | 0.094 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.282 in |
| Length - Above Flange [x] | 7.16 mm |
| Length - Below Flange [x] | 0.156 in |
| Length - Below Flange [x] | 3.96 mm |
| Length - Overall | 11.9 mm |
| Length - Overall [x] | 0.469 in |
| Mounting Hole Diameter | 1.63 mm |
| Mounting Hole Diameter [diameter] | 0.064 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.05 in |
| Pin Size - Above Flange [diameter] | 1.27 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.27 | |
| 10 | $ 1.98 | |||
| 25 | $ 1.89 | |||
| 50 | $ 1.85 | |||
| 100 | $ 1.77 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.26 | |||
| 3000 | $ 1.18 | |||
Description
General part information
3138-4 Series
PC Pin Terminal Connector Through Hole Gold 0.050" (1.27mm) Dia
Documents
Technical documentation and resources
No documents available
