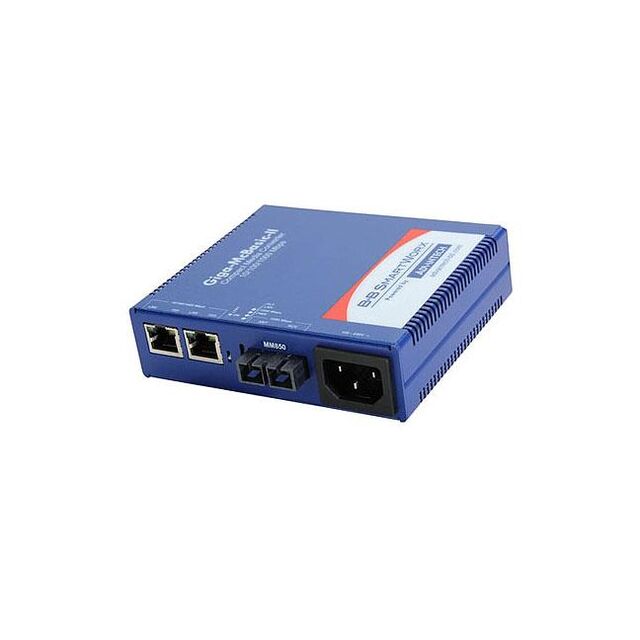

IMC-470-MM-US

Active

Advantech Corp

GIGA-MCBASIC-II, TX/SX-MM850-SC

Search across all available documentation for this part.

Active

Advantech Corp

GIGA-MCBASIC-II, TX/SX-MM850-SC

Technical Specifications

Parameters and characteristics for this part

Specification	IMC-470-MM-US

Configuration	Fixed, SFP
Connector Type	RJ45, SFP
Copper Ports	2
Copper Type	1000, 10, 100
Distance	550 m
Features	LFPT
Fiber Ports	1
Fiber Type	Gigabit (Singlemode, Multimode)
Mounting Type	DIN Rail
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
SFP/XFP Ports	1
Type	Unmanaged

Part	Type	Copper Ports	Distance	Configuration	SFP/XFP Ports	Connector Type	Copper Type	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Fiber Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Fiber Ports	MTU	Features	Distance
Advantech Corp IMC-470-SM-US	Unmanaged	1 2	10 km	Fixed SFP	1 1	RJ45 SC SFP	10 100 1000	240 VAC	100 VAC	DIN Rail	Gigabit (Singlemode Multimode) Singlemode	-10 °C	50 °C	1	Jumbo	LFPT
Advantech Corp IMC-470-M1-US	Unmanaged	2	2 km	Fixed SFP	1	RJ45 SFP	10 100 1000			DIN Rail	Gigabit (Singlemode Multimode)	-10 °C	50 °C	1		LFPT
Advantech Corp IMC-470-SFP-US	Unmanaged	1 2		Fixed SFP	1 1	RJ45 SFP	10 100 1000	240 VAC	100 VAC	DIN Rail	Gigabit (Singlemode Multimode)	-10 °C	50 °C	1	Jumbo	LFPT	Varies
Advantech Corp IMC-470-MM-US	Unmanaged	2	550 m	Fixed SFP	1	RJ45 SFP	10 100 1000			DIN Rail	Gigabit (Singlemode Multimode)	-10 °C	50 °C	1		LFPT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 406.35

General part information

GIGA-MCBASIC-II, TX/SX-MM850-SC

Technical documentation and resources
