92009-4
ActiveTE Connectivity AMP Connectors

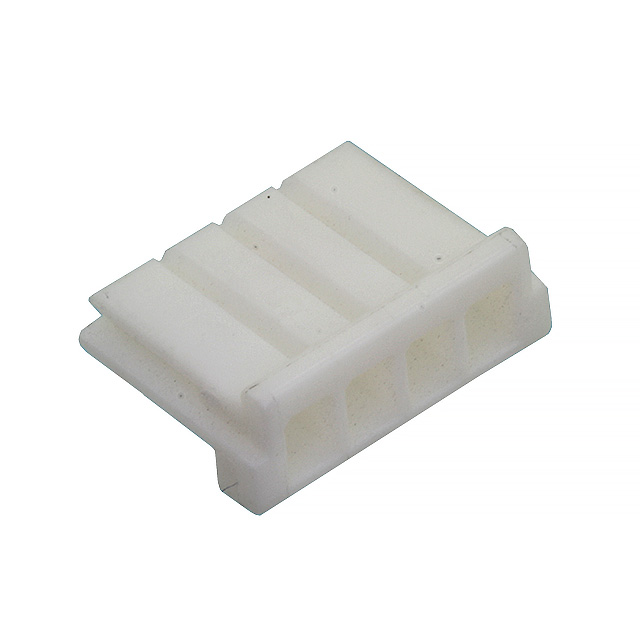

CONN RCPT HSG 4POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
92009-4
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 2.50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 92009-4 | 92009 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6, Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 2 - 14 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
92009 Series
CONN RCPT HSG 4POS 2.50MM
| Part | Number of Rows | Contact Type | Color | Number of Positions | Mounting Type | Pitch [x] | Pitch [x] | Note | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 92009-4 | 1 | Female Socket | Natural | 4 | Free Hanging (In-Line) | 0.098 in | 2.5 mm | Contacts Not Included | -25 °C | 105 ░C | Polyamide (PA66), Nylon 6/6 | Crimp | Receptacle |
TE Connectivity AMP Connectors 92009-6 | 1 | Female Socket | Natural | 6 | Free Hanging (In-Line) | 0.098 in | 2.5 mm | Contacts Not Included | -25 °C | 105 ░C | Polyamide (PA66), Nylon 6/6 | Crimp | Receptacle |
TE Connectivity AMP Connectors 1-92009-4 | 1 | Female Socket | Natural | 14 | Free Hanging (In-Line) | 0.098 in | 2.5 mm | Contacts Not Included | -25 °C | 105 ░C | Nylon, Polyamide (PA) | Crimp | Receptacle |
TE Connectivity AMP Connectors 92009-8 | 1 | Female Socket | Natural | 8 | Free Hanging (In-Line) | 0.098 in | 2.5 mm | Contacts Not Included | -25 °C | 105 ░C | Polyamide (PA66), Nylon 6/6 | Crimp | Receptacle |
TE Connectivity AMP Connectors 1-92009-0 | 1 | Female Socket | Natural | 10 | Free Hanging (In-Line) | 0.098 in | 2.5 mm | Contacts Not Included | -25 °C | 105 ░C | Nylon, Polyamide (PA) | Crimp | Receptacle |
TE Connectivity AMP Connectors 92009-3 | 1 | Female Socket | Natural | Free Hanging (In-Line) | 0.098 in | 2.5 mm | Contacts Not Included | -25 °C | 105 ░C | Polyamide (PA66), Nylon 6/6 | Crimp | Receptacle | |
TE Connectivity AMP Connectors 92009-2 | 1 | Female Socket | Natural | 2 | Free Hanging (In-Line) | 0.098 in | 2.5 mm | Contacts Not Included | -25 °C | 105 ░C | Polyamide (PA66), Nylon 6/6 | Crimp | Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20000 | $ 0.16 | |
Description
General part information
92009 Series
4 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Documents
Technical documentation and resources
