92009-3

Active

TE Connectivity AMP Connectors

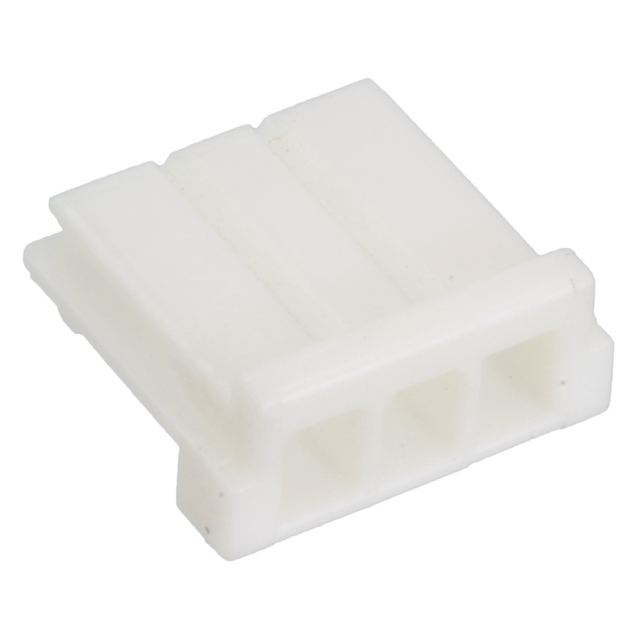

CONN RCPT HSG 3POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 3POS 2.50MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24000	$ 0.15

General part information

3 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	92009-3	92009 Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	2 - 14
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

CONN RCPT HSG 4POS 2.50MM

Part	Number of Rows	Contact Type	Color	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Note	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Termination	Connector Type
TE Connectivity AMP Connectors 92009-4	1	Female Socket	Natural	4	Free Hanging (In-Line)	0.098 in	2.5 mm	Contacts Not Included	-25 °C	105 ░C	Polyamide (PA66), Nylon 6/6	Crimp	Receptacle
TE Connectivity AMP Connectors 92009-6	1	Female Socket	Natural	6	Free Hanging (In-Line)	0.098 in	2.5 mm	Contacts Not Included	-25 °C	105 ░C	Polyamide (PA66), Nylon 6/6	Crimp	Receptacle
TE Connectivity AMP Connectors 1-92009-4	1	Female Socket	Natural	14	Free Hanging (In-Line)	0.098 in	2.5 mm	Contacts Not Included	-25 °C	105 ░C	Nylon, Polyamide (PA)	Crimp	Receptacle
TE Connectivity AMP Connectors 92009-8	1	Female Socket	Natural	8	Free Hanging (In-Line)	0.098 in	2.5 mm	Contacts Not Included	-25 °C	105 ░C	Polyamide (PA66), Nylon 6/6	Crimp	Receptacle
TE Connectivity AMP Connectors 1-92009-0	1	Female Socket	Natural	10	Free Hanging (In-Line)	0.098 in	2.5 mm	Contacts Not Included	-25 °C	105 ░C	Nylon, Polyamide (PA)	Crimp	Receptacle
TE Connectivity AMP Connectors 92009-3	1	Female Socket	Natural		Free Hanging (In-Line)	0.098 in	2.5 mm	Contacts Not Included	-25 °C	105 ░C	Polyamide (PA66), Nylon 6/6	Crimp	Receptacle
TE Connectivity AMP Connectors 92009-2	1	Female Socket	Natural	2	Free Hanging (In-Line)	0.098 in	2.5 mm	Contacts Not Included	-25 °C	105 ░C	Polyamide (PA66), Nylon 6/6	Crimp	Receptacle
