88778 002100

Active

Belden Inc.

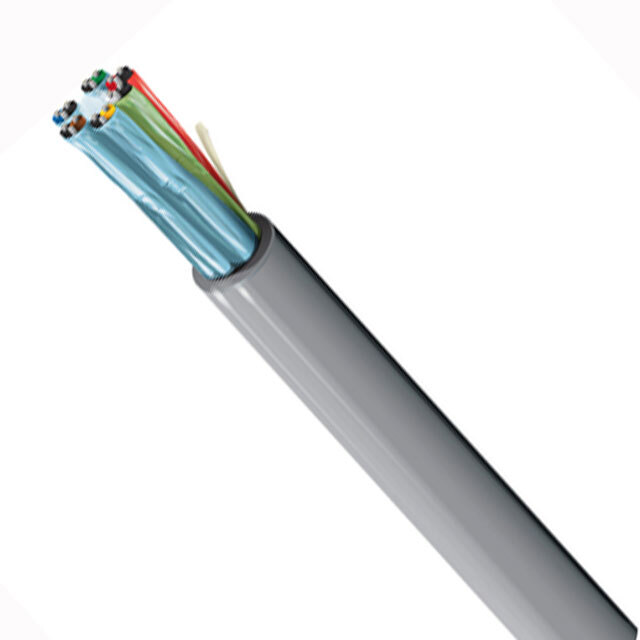

MULTI-PAIR 12COND 22AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12COND 22AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	88778 002100

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	7.85 mm
Jacket (Insulation) Diameter [diameter]	0.309 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	22 AWG

Part	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Shield Type	Shield Material	Number of Conductors	Wire Gauge	Features	Jacket Color	Shield Coverage
Belden Inc. 88778 002100	Copper Tinned	7.85 mm	0.309 in	Fluorinated Ethylene-Propylene (FEP) Plenum	0.356 mm	0.014 in	200 °C	-70 °C	Multi-Pair	Fluorinated Ethylene-Propylene (FEP)	7	30 AWG	30.5 m	100 ft	Foil	Aluminum	12	22 AWG	Drain Wire	Red	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (6 Pair Twisted) Conductor Multi-Pair Cable Red 22 AWG Foil 100.0' (30.5m)
