Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B-533-1 | B-533 Series |
|---|---|---|
| Diameter - Inside [diameter] | 19.05 mm | 19.05 mm |
| Diameter - Inside [diameter] | 0.75 in | 0.75 in |
| Diameter - Outside [diameter] | 32.13 mm | 32.13 mm |
| Diameter - Outside [diameter] | 1.265 in | 1.265 in |
| Length - Below Head | 2.16 mm | 2.16 mm |
| Length - Below Head | 0.085 in | 0.085 in |
| Material | Thermoplastic | Thermoplastic |
| Thickness - Overall | 0.325 in | 0.325 in |
| Thickness - Overall | 8.26 mm | 8.26 mm |

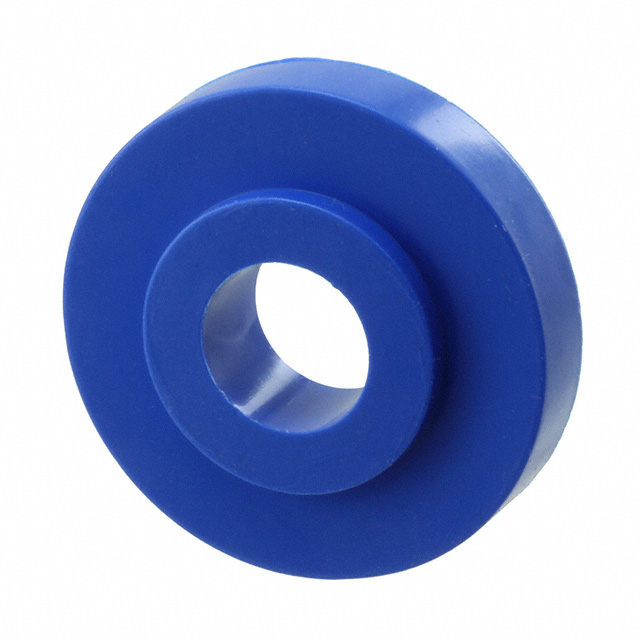

B-533 Series
BUSHING 3/4" THERMOPLASTIC
| Part | Length - Below Head | Length - Below Head | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Thickness - Overall | Thickness - Overall | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Material |
|---|---|---|---|---|---|---|---|---|---|
Aearo Technologies LLC, a 3M company B-533-V2375 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-533-2 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-533-1 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-533-V2750 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-533-3 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-533-V2325 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-533-V2775 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-533-V2590 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-533-V2550 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Aearo Technologies LLC, a 3M company B-533-V2525 | 2.16 mm | 0.085 in | 19.05 mm | 0.75 in | 0.325 in | 8.26 mm | 32.13 mm | 1.265 in | Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.51 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.10 | |||
| 100 | $ 1.05 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.96 | |||
| 1000 | $ 0.93 | |||
Description
General part information
B-533 Series
Shoulder Washer 0.325" (8.26mm) Thick Thermoplastic
