S6E2HE6F0AGV2000M

Active

Infineon Technologies

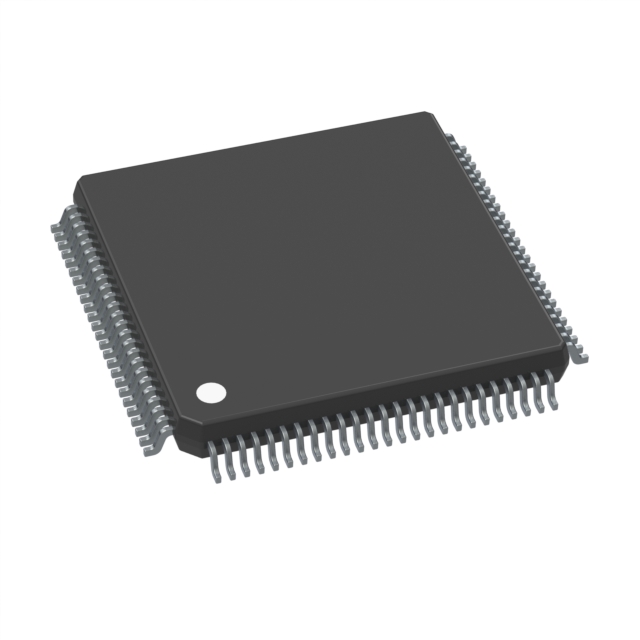

MCU 32-BIT ARM CORTEX M4F RISC 512KB FLASH 3.3V/5V 100-PIN LQFP TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S6E2HE6F0AGV2000M

Active

Infineon Technologies

MCU 32-BIT ARM CORTEX M4F RISC 512KB FLASH 3.3V/5V 100-PIN LQFP TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S6E2HE6F0AGV2000M

Connectivity	SD, I2C, CSIO, EBI/EMI, UART/USART, LINbus
Core Processor	ARM® Cortex®-M4F
Core Size	32-Bit
Data Converters	A/D 24x12b, D/A 2x12b
Mounting Type	Surface Mount
Number of I/O	80
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	100-LQFP
Peripherals	DMA, LVD, PWM, POR, WDT
Program Memory Size	544 KB
Program Memory Type	FLASH
RAM Size	64 K
Speed	160 MHz
Supplier Device Package	100-LQFP (14x14)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

S6E2HE6 Series

Part	Peripherals	Number of I/O	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Supplier Device Package	Connectivity	RAM Size	Operating Temperature [Min]	Operating Temperature [Max]	Data Converters	Program Memory Size	Core Size	Core Processor	Speed	Oscillator Type	Program Memory Type	Package / Case
Infineon Technologies S6E2HE6F0AGV20000	DMA LVD POR PWM WDT	80	2.7 V	5.5 V	Surface Mount	100-LQFP (14x14)	CSIO EBI/EMI I2C LINbus SD UART/USART	64 K	-40 °C	125 °C	A/D 24x12b D/A 2x12b	544 KB	32-Bit	ARM® Cortex®-M4F	160 MHz	Internal	FLASH	100-LQFP
Infineon Technologies S6E2HE6F0AGV2000M	DMA LVD POR PWM WDT	80	2.7 V	5.5 V	Surface Mount	100-LQFP (14x14)	CSIO EBI/EMI I2C LINbus SD UART/USART	64 K	-40 °C	125 °C	A/D 24x12b D/A 2x12b	544 KB	32-Bit	ARM® Cortex®-M4F	160 MHz	Internal	FLASH	100-LQFP
Infineon Technologies S6E2HE6F0AGV2000A	DMA LVD POR PWM WDT	80	2.7 V	5.5 V	Surface Mount	100-LQFP (14x14)	CSIO EBI/EMI I2C LINbus SD UART/USART	64 K	-40 °C	125 °C	A/D 24x12b D/A 2x12b	544 KB	32-Bit Single-Core	ARM® Cortex®-M4F	160 MHz	Internal	FLASH	100-LQFP
Infineon Technologies S6E2HE6G0AGV2000M	DMA LVD POR PWM WDT	100 I/O	2.7 V	5.5 V	Surface Mount	120-LQFP (16x16)	CSIO EBI/EMI I2C LINbus SD UART/USART	64 K	-40 °C	125 °C	A/D 24x12b D/A 2x12b	544 KB	32-Bit	ARM® Cortex®-M4F	160 MHz	Internal	FLASH	120-LQFP
Infineon Technologies S6E2HE6G0AGV2B00M	DMA LVD POR PWM WDT	100 I/O	2.7 V	5.5 V	Surface Mount	120-LQFP (16x16)	CSIO EBI/EMI I2C LINbus SD UART/USART	64 K	-40 °C	125 °C	A/D 24x12b D/A 2x12b	544 KB	32-Bit	ARM® Cortex®-M4F	160 MHz	Internal	FLASH	120-LQFP
Infineon Technologies S6E2HE6G0AGV2B000	DMA LVD POR PWM WDT	100 I/O	2.7 V	5.5 V	Surface Mount	120-LQFP (16x16)	CSIO EBI/EMI I2C LINbus SD UART/USART	64 K	-40 °C	125 °C	A/D 24x12b D/A 2x12b	544 KB	32-Bit Single-Core	ARM® Cortex®-M4F	160 MHz	Internal	FLASH	120-LQFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	900	$ 7.40

Description

General part information

S6E2HE6 Series

ARM® Cortex®-M4F FM4 S6E2H4 Microcontroller IC 32-Bit 160MHz 544KB (544K x 8) FLASH 100-LQFP (14x14)
