M2029BB1W40

Obsolete

NKK Switches

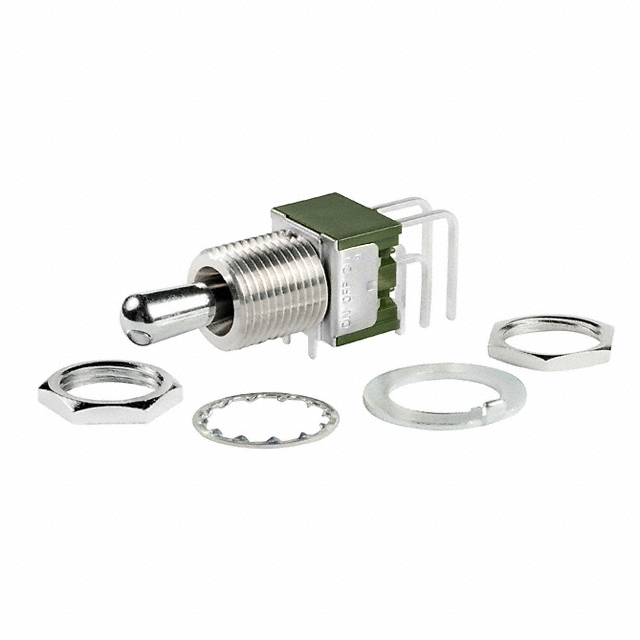

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2029BB1W40

Actuator Length [x]	11.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Panel Mount, Right Angle, Vertical
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Switch Function	Actuator Type	Illumination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Voltage Rating - DC	Termination Style	Panel Cutout Dimensions [diameter]	Bushing Thread	Bushing Thread	Circuit	Features	Voltage Rating - AC	Current Rating (Amps)	Actuator Length [x]	Actuator Material	Ingress Protection
NKK Switches M2029BB1W40	On-Off-Mom	Standard Round	Non-Illuminated	Panel Mount Right Angle Vertical	-30 ░C	85 °C	25000 Steps	30 V	PC Pin	12.5 mm	M12	1 x 1	DPDT	Epoxy Sealed Terminals	125 V	3 A 6 A	11.5 mm	Brass Chrome Plated
NKK Switches M2029BB3W01	On-Off-Mom	Standard Round	Non-Illuminated		-30 ░C	85 °C	25000 Steps	30 V	Solder Lug	12.5 mm	M12	1 x 1	DPDT	Epoxy Sealed Terminals	125 V	3 A 6 A	11.5 mm	Brass Chrome Plated	IP67 - Dust Tight Waterproof
