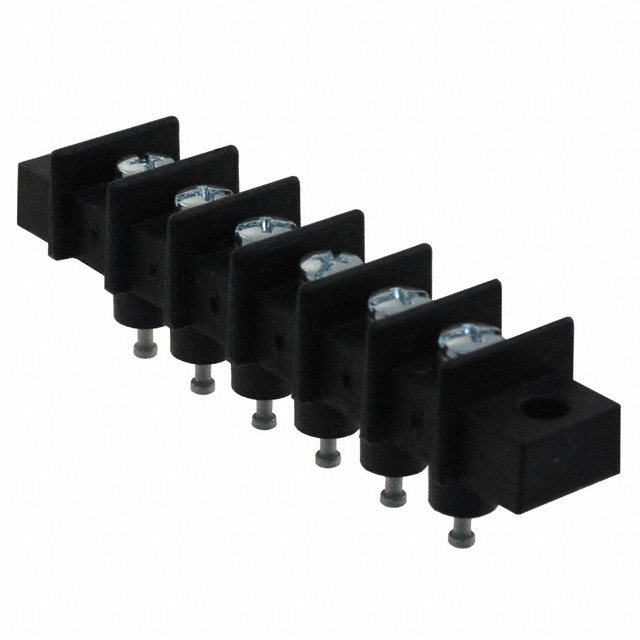

GFTAX-6

Active

Curtis Industries

CONN BARRIER STRIP 6CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GFTAX-6

Active

Curtis Industries

CONN BARRIER STRIP 6CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.42

Description

General part information

GFTAX Series

6 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GFTAX-6	GFTAX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated	Solder Turret, Insulated
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	6	2 - 23
Number of Rows	1	1
Number of Wire Entries	6	2 - 16
Number of Wire Entries	-	22 - 23
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GFTAX Series

CONN BARRIER STRP 15CIRC 0.438"

Part	Number of Circuits	Material - Insulation	Terminal Screw Material	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Barrier Type	Number of Rows	Operating Temperature	Bottom Termination	Mounting Type	Material Flammability Rating	Terminal Block Type	Features	Number of Wire Entries	Color	Pitch [x]	Pitch [x]	Current Rating (Amps)	Number of Wire Entries [custom]
Curtis Industries GFTAX-15	15	Polyphenylene Oxide (PPO)	Steel	12 AWG	22 AWG	Screws	2 Wall (Dual)	1	110 °C	Solder Turret, Insulated	Chassis, Panel	UL94 V-0	Barrier Block	Flange	15	Black	11.12 mm	0.438 in	20 A
Curtis Industries GFTAX-11	11	Polyphenylene Oxide (PPO)	Steel	12 AWG	22 AWG	Screws	2 Wall (Dual)	1	110 °C	Solder Turret, Insulated	Chassis, Panel	UL94 V-0	Barrier Block	Flange	11	Black	11.12 mm	0.438 in	20 A
Curtis Industries GFTAX-9		Polyphenylene Oxide (PPO)	Steel	12 AWG	22 AWG	Screws	2 Wall (Dual)	1	110 °C	Solder Turret, Insulated	Chassis, Panel	UL94 V-0	Barrier Block	Flange	9	Black	11.12 mm	0.438 in	20 A
Curtis Industries GFTAX-6	6	Polyphenylene Oxide (PPO)	Steel	12 AWG	22 AWG	Screws	2 Wall (Dual)	1	110 °C	Solder Turret, Insulated	Chassis, Panel	UL94 V-0	Barrier Block	Flange	6	Black	11.12 mm	0.438 in	20 A
Curtis Industries GFTAX-22	22	Polyphenylene Oxide (PPO)	Steel	12 AWG	22 AWG	Screws	2 Wall (Dual)	1	110 °C	Solder Turret, Insulated	Chassis, Panel	UL94 V-0	Barrier Block	Flange		Black	11.12 mm	0.438 in	20 A	22
Curtis Industries GFTAX-23	23	Polyphenylene Oxide (PPO)	Steel	12 AWG	22 AWG	Screws	2 Wall (Dual)	1	110 °C	Solder Turret, Insulated	Chassis, Panel	UL94 V-0	Barrier Block	Flange		Black	11.12 mm	0.438 in	20 A	23
Curtis Industries GFTAX-16	16	Polyphenylene Oxide (PPO)	Steel	12 AWG	22 AWG	Screws	2 Wall (Dual)	1	110 °C	Solder Turret, Insulated	Chassis, Panel	UL94 V-0	Barrier Block	Flange	16	Black	11.12 mm	0.438 in	20 A
Curtis Industries GFTAX-2	2	Polyphenylene Oxide (PPO)	Steel	12 AWG	22 AWG	Screws	2 Wall (Dual)	1	110 °C	Solder Turret, Insulated	Chassis, Panel	UL94 V-0	Barrier Block	Flange	2	Black	11.12 mm	0.438 in	20 A
