CDFR3W3113L212
ActiveMH Connectors

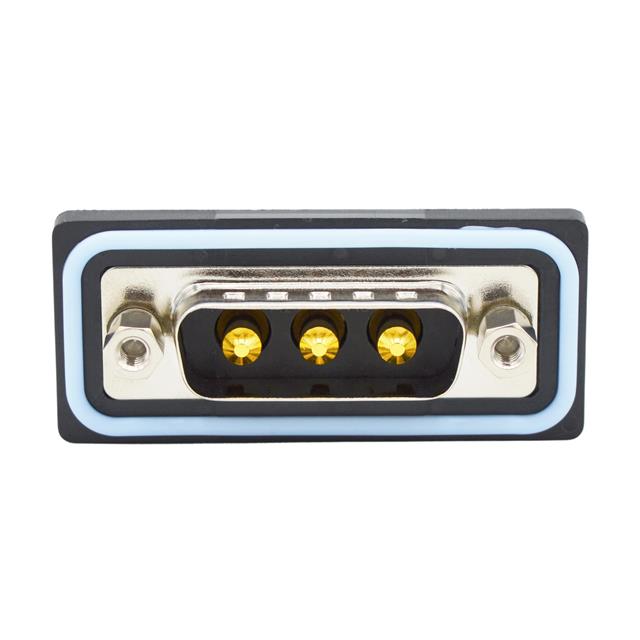

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-3W3, PLUG, 3 CONTACTS, 3 POWER, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
CDFR3W3113L212
ActiveMH Connectors
COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-3W3, PLUG, 3 CONTACTS, 3 POWER, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CDFR3W3113L212 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Power |
| Current Rating (Amps) | 20 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | 2 (DA, A) |
| Shell Size, Connector Layout [custom] | 3W3 |
| Termination | Solder |
CDFR3W3 Series
| Part | Contact Type | Features | Termination | Number of Rows | Flange Feature | Current Rating (Amps) | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Color | Number of Positions | Material Flammability Rating | Dielectric Material | Shell Material, Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish | Connector Type | Ingress Protection | Contact Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Power | Grounding Indents | Solder | 1 | Female Screwlock (4-40) Mating Side | 5 A 20 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | Male Pins Plug | IP67 - Dust Tight Waterproof | Brass | |
MH Connectors | Power | Board Lock Grounding Indents Mounting Brackets | Solder | 1 | Female Screwlock (4-40) Mating Side | 20 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | Panel Mount Right Angle Through Hole | Gold | Male Pins Plug | IP67 - Dust Tight Waterproof | Brass | Flash | ||
MH Connectors | Power | Grounding Indents | Solder | 1 | Female Screwlock (4-40) Mating Side | 20 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | Panel Mount Right Angle Through Hole | Gold | Male Pins Plug | IP67 - Dust Tight Waterproof | Brass | Flash | ||
MH Connectors | Power | Board Lock Mounting Brackets | Solder | 1 | Female Screwlock (4-40) Mating Side | 40 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | Panel Mount Right Angle Through Hole | Gold | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Brass | Flash | ||
MH Connectors | Power | Board Lock Mounting Brackets | Solder | 1 | Female Screwlock (4-40) Mating Side | 20 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Brass | |
MH Connectors | Power | Board Lock Grounding Indents Mounting Brackets | Solder | 1 | Female Screwlock (4-40) Mating Side | 5 A 20 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | Male Pins Plug | IP67 - Dust Tight Waterproof | Brass | |
MH Connectors | Power | Board Lock Mounting Brackets | Solder | 1 | Female Screwlock (4-40) Mating Side | 5 A 20 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Brass | |
MH Connectors | Power | Board Lock Mounting Brackets | Solder | 1 | Female Screwlock (4-40) Mating Side | 20 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | Panel Mount Right Angle Through Hole | Gold | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Brass | Flash | ||
MH Connectors | Power | Grounding Indents | Solder | 1 | Female Screwlock (4-40) Mating Side | 20 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | Male Pins Plug | IP67 - Dust Tight Waterproof | Brass | |
MH Connectors | Power | Board Lock Grounding Indents Mounting Brackets | Solder | 1 | Female Screwlock (4-40) Mating Side | 40 A | Combo D-Sub | 2 (DA A) | 3W3 | Black | 3 | UL94 V-0 | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | -25 °C | 85 °C | Panel Mount Right Angle Through Hole | Gold | Male Pins Plug | IP67 - Dust Tight Waterproof | Brass | Flash |
