ActiveSwitchcraft Inc.

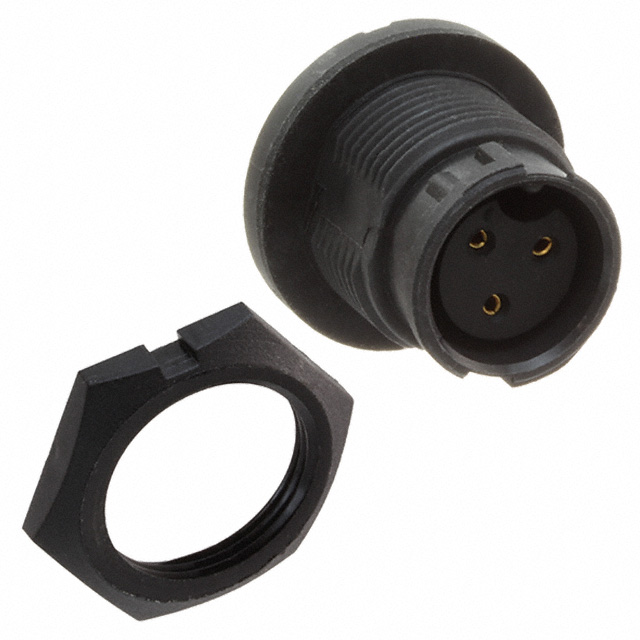

CONN CIRCULAR SKT 3 POS SOLDER ST PANEL MOUNT 3 TERMINAL 1 PORT BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P3FPX
ActiveSwitchcraft Inc.
CONN CIRCULAR SKT 3 POS SOLDER ST PANEL MOUNT 3 TERMINAL 1 PORT BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P3FPX | EN3P3F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder, Circuit Board, Solder, Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P3F Series
CONN RCPT FMALE 3POS GOLD SOLDER
| Part | Primary Material | Color | Mounting Type | Orientation | Mounting Feature | Material Flammability Rating | Termination | Current Rating (Amps) | Insert Material | Ingress Protection | Contact Material | Contact Finish - Mating | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Applications | Connector Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P3F16PX | Plastic | Black | Panel Mount, Through Hole | Keyed | Bulkhead - Front Side Nut | UL94 V-0 | Solder | 13 A | Elastomer | IP66/IP68 | Copper Alloy | Gold | Unshielded | 65 °C | -40 °C | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Receptacle, Female Sockets | 250 VAC |
Switchcraft Inc. EN3P3FPX | Plastic | Black | Panel Mount, Through Hole | Keyed | Bulkhead - Front Side Nut | UL94 V-0 | Solder | 7.5 A | Elastomer | IP66/IP68 | Copper Alloy | Gold | Unshielded | 65 °C | -40 °C | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Receptacle, Female Sockets | 250 VAC |
Switchcraft Inc. EN3P3FRAPCBW | Plastic | Black | Panel Mount, Right Angle, Through Hole | Keyed | Bulkhead - Front Side Nut | UL94 V-0 | Circuit Board, Solder | 5 A | Elastomer | IP66/IP68 | Copper Alloy | Gold | Unshielded | 65 °C | -40 °C | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Receptacle, Female Sockets | 250 VAC |
Switchcraft Inc. EN3P3FX | Plastic | Black | Keyed | Bulkhead - Front Side Nut | UL94 V-0 | 7.5 A | Elastomer | IP66/IP68 | Copper Alloy | Gold | Unshielded | 65 °C | -40 °C | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Receptacle, Female Sockets | 250 VAC | ||
Switchcraft Inc. EN3P3FRAPCBN | Plastic | Black | Panel Mount, Right Angle, Through Hole | Keyed | Bulkhead - Front Side Nut | UL94 V-0 | Circuit Board, Solder | 5 A | Elastomer | IP66/IP68 | Copper Alloy | Gold | Unshielded | 65 °C | -40 °C | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Receptacle, Female Sockets | 250 VAC |
Switchcraft Inc. EN3P3FRAPCX | Plastic | Black | Panel Mount, Right Angle, Through Hole | Keyed | Bulkhead - Front Side Nut | UL94 V-0 | Solder | 5 A | Elastomer | IP66/IP68 | Copper Alloy | Gold | Unshielded | 65 °C | -40 °C | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Receptacle, Female Sockets | 250 VAC |
Switchcraft Inc. EN3P3F16X | Plastic | Black | Keyed | Bulkhead - Front Side Nut | UL94 V-0 | 13 A | Elastomer | IP66/IP68 | Copper Alloy | Gold | Unshielded | 65 °C | -40 °C | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Receptacle, Female Sockets | 250 VAC | ||
Switchcraft Inc. EN3P3F16CX | Plastic | Black | Keyed | Bulkhead - Front Side Nut | UL94 V-0 | Crimp | 13 A | Elastomer | IP66/IP68 | Copper Alloy | Gold | Unshielded | 65 °C | -40 °C | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Receptacle, Female Sockets | 250 VAC | |
Switchcraft Inc. EN3P3FCX | Plastic | Black | Keyed | Bulkhead - Front Side Nut | UL94 V-0 | Crimp | 7.5 A | Elastomer | IP66/IP68 | Copper Alloy | Gold | Unshielded | 65 °C | -40 °C | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Receptacle, Female Sockets | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.98 | |
| 10 | $ 10.62 | |||
| 25 | $ 10.21 | |||
| 50 | $ 9.80 | |||
| 100 | $ 9.25 | |||
| 300 | $ 8.44 | |||
| 500 | $ 7.89 | |||
| 1000 | $ 7.24 | |||
Description
General part information
EN3P3F Series
3 Position Circular Connector Receptacle, Female Sockets Solder
