EN3P3FCX

Active

Switchcraft Inc.

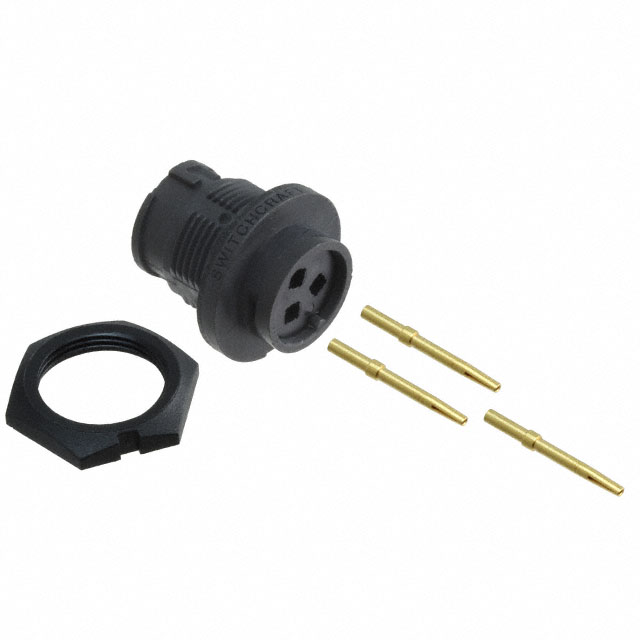

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P3FCX

Active

Switchcraft Inc.

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.75

Description

General part information

EN3P3F Series

3 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P3FCX	EN3P3F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Solder, Circuit Board, Solder, Crimp
Voltage Rating	250 VAC	250 VAC

EN3P3F Series

CONN RCPT FMALE 3POS GOLD SOLDER

Part	Primary Material	Color	Mounting Type	Orientation	Mounting Feature	Material Flammability Rating	Termination	Current Rating (Amps)	Insert Material	Ingress Protection	Contact Material	Contact Finish - Mating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Applications	Connector Type	Voltage Rating
Switchcraft Inc. EN3P3F16PX	Plastic	Black	Panel Mount, Through Hole	Keyed	Bulkhead - Front Side Nut	UL94 V-0	Solder	13 A	Elastomer	IP66/IP68	Copper Alloy	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Receptacle, Female Sockets	250 VAC
Switchcraft Inc. EN3P3FPX	Plastic	Black	Panel Mount, Through Hole	Keyed	Bulkhead - Front Side Nut	UL94 V-0	Solder	7.5 A	Elastomer	IP66/IP68	Copper Alloy	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Receptacle, Female Sockets	250 VAC
Switchcraft Inc. EN3P3FRAPCBW	Plastic	Black	Panel Mount, Right Angle, Through Hole	Keyed	Bulkhead - Front Side Nut	UL94 V-0	Circuit Board, Solder	5 A	Elastomer	IP66/IP68	Copper Alloy	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Receptacle, Female Sockets	250 VAC
Switchcraft Inc. EN3P3FX	Plastic	Black		Keyed	Bulkhead - Front Side Nut	UL94 V-0		7.5 A	Elastomer	IP66/IP68	Copper Alloy	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Receptacle, Female Sockets	250 VAC
Switchcraft Inc. EN3P3FRAPCBN	Plastic	Black	Panel Mount, Right Angle, Through Hole	Keyed	Bulkhead - Front Side Nut	UL94 V-0	Circuit Board, Solder	5 A	Elastomer	IP66/IP68	Copper Alloy	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Receptacle, Female Sockets	250 VAC
Switchcraft Inc. EN3P3FRAPCX	Plastic	Black	Panel Mount, Right Angle, Through Hole	Keyed	Bulkhead - Front Side Nut	UL94 V-0	Solder	5 A	Elastomer	IP66/IP68	Copper Alloy	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Receptacle, Female Sockets	250 VAC
Switchcraft Inc. EN3P3F16X	Plastic	Black		Keyed	Bulkhead - Front Side Nut	UL94 V-0		13 A	Elastomer	IP66/IP68	Copper Alloy	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Receptacle, Female Sockets	250 VAC
Switchcraft Inc. EN3P3F16CX	Plastic	Black		Keyed	Bulkhead - Front Side Nut	UL94 V-0	Crimp	13 A	Elastomer	IP66/IP68	Copper Alloy	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Receptacle, Female Sockets	250 VAC
Switchcraft Inc. EN3P3FCX	Plastic	Black		Keyed	Bulkhead - Front Side Nut	UL94 V-0	Crimp	7.5 A	Elastomer	IP66/IP68	Copper Alloy	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Receptacle, Female Sockets	250 VAC
