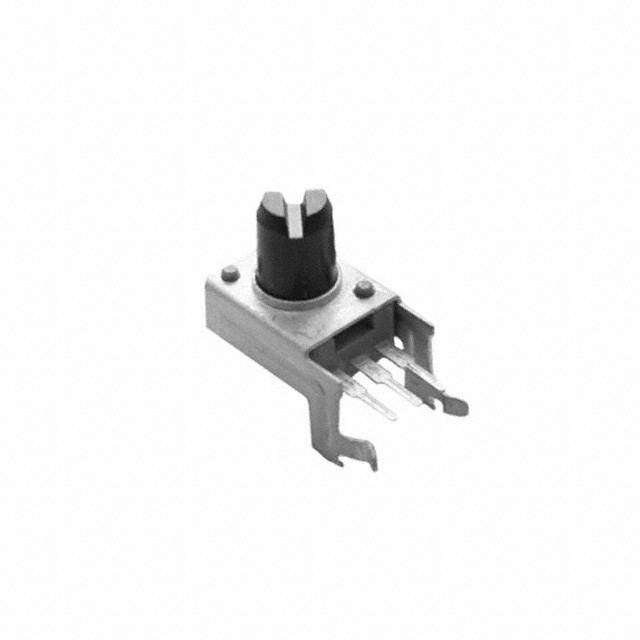

P090L-02T20BR50K

Active

TT Electronics/BI

POT 50K OHM 1/32W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P090L-02T20BR50K

Active

TT Electronics/BI

POT 50K OHM 1/32W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.19
		10	$ 1.05
		25	$ 0.94
		40	$ 0.91
		80	$ 0.87
		230	$ 0.83
		440	$ 0.69
		1350	$ 0.65
		5400	$ 0.64

Description

General part information

P090L Series

50k Ohm 1 Gang Linear Through Hole Potentiometer None 1.0 Kierros Conductive Plastic 0.03W, 1/32W PC Pins, Board Locks

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P090L-02T20BR50K	P090L Series

Actuator Diameter [diameter]	0.236 in	0.157 - 0.236 in
Actuator Diameter [diameter]	6 mm	4 - 6 mm
Actuator Length	-	0.984 in
Actuator Length	-	25 mm
Actuator Length [z]	20 mm	20 - 35 mm
Actuator Length [z]	0.787 in	0.787 - 1.378 in
Actuator Type	Knurled	Knurled, Flatted
Adjustment Type	Side Adjustment	Side Adjustment
Built in Switch	False	False
Built in Switch	-	Detent
Mounting Type	Through Hole	Through Hole
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.03125 W	0.03125 W
Power (Watts)	30 mW	30 mW
Resistance (Ohms)	50 kOhms	1 - 100 kOhms
Resistance (Ohms)	-	10k, 1M
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	280 °	280 °
Size - Body [x]	0.61 "	0.433 - 0.61 "
Size - Body [x]	15.5 mm	11 - 15.5 mm
Size - Body [y]	0.386 "	0.386 "
Size - Body [y]	9.8 mm	9.8 mm
Taper	Linear	Linear, Logarithmic
Termination Style	Board Locks, PC Pins	Board Locks, PC Pins
Tolerance	20 %	20 %

P090L Series

POT 10K OHM 1/32W PLASTIC LINEAR

Part	Termination Style	Power (Watts)	Power (Watts)	Rotation	Number of Gangs	Resistance (Ohms)	Adjustment Type	Actuator Type	Taper	Mounting Type	Actuator Length [z]	Actuator Length [z]	Resistive Material	Tolerance	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Number of Turns	Resistance (Ohms)
TT Electronics/BI P090L-01K20BR10K	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1	10k	Side Adjustment	Knurled	Linear	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	4 mm	0.157 in	11 mm	9.8 mm	0.433 "	0.386 "	1
TT Electronics/BI P090L-01F20AR100K	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1		Side Adjustment	Flatted	Logarithmic	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	6 mm	0.236 in	11 mm	9.8 mm	0.433 "	0.386 "	1	100 kOhms
TT Electronics/BI P090L-02T20BR50K	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1		Side Adjustment	Knurled	Linear	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	6 mm	0.236 in	15.5 mm	9.8 mm	0.61 "	0.386 "	1	50 kOhms
TT Electronics/BI P090L-01T20BR1K	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1		Side Adjustment	Knurled	Linear	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	6 mm	0.236 in	11 mm	9.8 mm	0.433 "	0.386 "	1	1 kOhms
TT Electronics/BI P090L-02F20BR1MEG	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1	1M	Side Adjustment	Flatted	Linear	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	6 mm	0.236 in	15.5 mm	9.8 mm	0.61 "	0.386 "	1
TT Electronics/BI P090L-02F20BR10K	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1	10k	Side Adjustment	Flatted	Linear	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	6 mm	0.236 in	15.5 mm	9.8 mm	0.61 "	0.386 "	1
TT Electronics/BI P090L-02F20BR100K	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1		Side Adjustment	Flatted	Linear	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	6 mm	0.236 in	15.5 mm	9.8 mm	0.61 "	0.386 "	1	100 kOhms
TT Electronics/BI P090L-01K25BR20K	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1		Side Adjustment	Knurled	Linear	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	4 mm	0.157 in	11 mm	9.8 mm	0.433 "	0.386 "	1	20 kOhms
TT Electronics/BI P090L-01F20BR10K	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1	10k	Side Adjustment	Flatted	Linear	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	6 mm	0.236 in	11 mm	9.8 mm	0.433 "	0.386 "	1
TT Electronics/BI P090L-02F20AR50K	Board Locks, PC Pins	0.03125 W	30 mW	280 °	1		Side Adjustment	Flatted	Logarithmic	Through Hole	20 mm	0.787 in	Conductive Plastic	20 %	6 mm	0.236 in	15.5 mm	9.8 mm	0.61 "	0.386 "	1	50 kOhms
