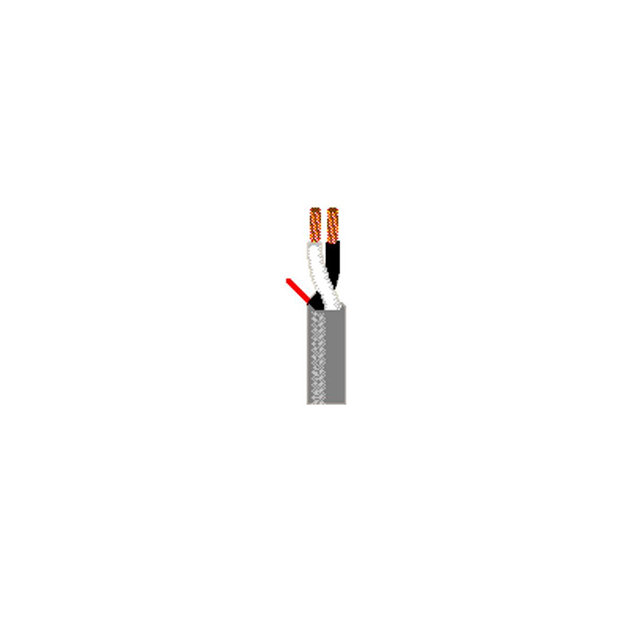

8812 0101000

Active

Belden Inc.

2 #12 PVC/NYL PVC

Search across all available documentation for this part.

Active

Belden Inc.

2 #12 PVC/NYL PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8812 0101000

Cable Type	Speaker
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	25
Jacket (Insulation) Diameter [diameter]	0.37 in
Jacket (Insulation) Diameter [diameter]	9.4 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Usage	Audio
Voltage	600 V
Wire Gauge	12 AWG

Part	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Material	Cable Type	Conductor Insulation	Jacket Color	Usage	Wire Gauge	Number of Conductors
Belden Inc. 8812 0101000	Copper Bare	0.37 in	9.4 mm	600 V	19	25	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Speaker	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Black	Audio	12 AWG	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.12

General part information

2 (1 Pair) Conductor Speaker Cable Black 12 AWG 1000.0' (304.8m)

Technical documentation and resources
