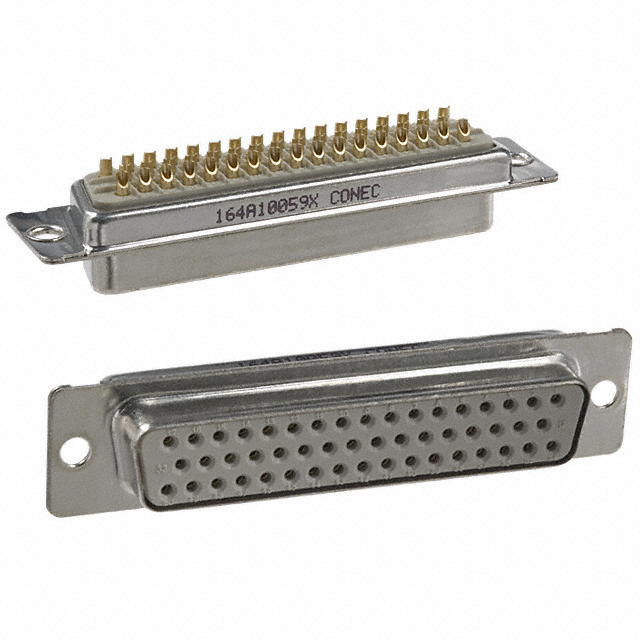

164A10059X

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	164A10059X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Voltage Rating	125 VDC
Wire Gauge	20 AWG

Part	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Connector Style	Contact Material	Mounting Type	Number of Rows	Contact Type	Dielectric Material	Voltage Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Wire Gauge	Connector Type	Shell Size, Connector Layout
Amphenol CONEC 164A10019X	UL94 V-0	8 çin	0.203 çm	Black	9	DE E	1	Gold	D-Sub	Copper Alloy	Free Hanging (In-Line)	2	Signal	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	7.5 A	-55 °C	125 °C	Housing/Shell (Unthreaded)	20 AWG	Receptacle Female Sockets
Amphenol CONEC 164A10059X	UL94 V-0	8 çin	0.203 çm	Black	50			Gold	D-Sub	Copper Alloy	Free Hanging (In-Line)	3	Signal	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	7.5 A	-55 °C	125 °C	Housing/Shell (Unthreaded)	20 AWG	Receptacle Female Sockets	5
Amphenol CONEC 164A10029X	UL94 V-0	8 çin	0.203 çm	Black	15			Gold	D-Sub	Copper Alloy	Free Hanging (In-Line)	2	Signal	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	7.5 A	-55 °C	125 °C	Housing/Shell (Unthreaded)	20 AWG	Receptacle Female Sockets	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
