151220-8321-RB

Active

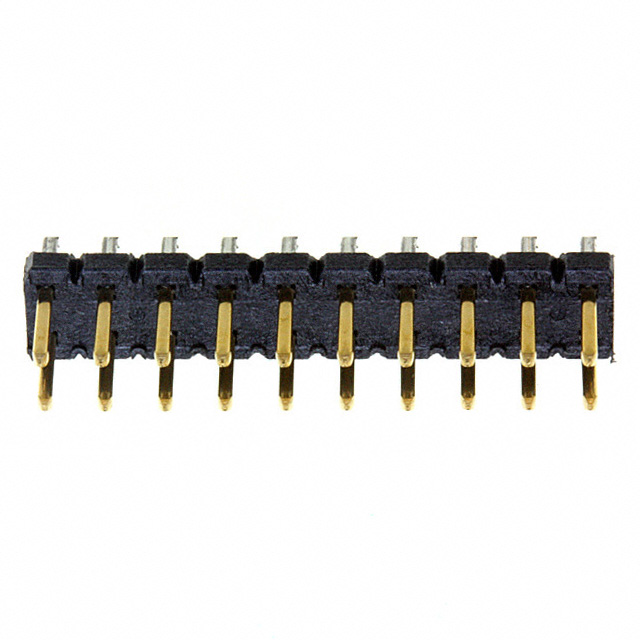

CONN HEADER VERT 20POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

151220-8321-RB

Active

CONN HEADER VERT 20POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

151220 Series

Connector Header Through Hole 20 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	151220-8321-RB	151220 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.13 in	0.13 - 0.152 in
Contact Length - Mating	3.3 mm	3.3 - 3.86 mm
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Features	-	Pick and Place
Insulation Color	Black	Black
Insulation Height [z]	0.06 in	0.06 - 0.165 in
Insulation Height [z]	1.52 mm	1.52 - 4.2 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Surface Mount, Through Hole, Right Angle
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.307 in	0.307 - 0.329 in
Overall Contact Length	7.8 mm	7.8 - 8.36 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

151220 Series

CONN HEADER VERT 20POS 2MM

Part	Overall Contact Length	Overall Contact Length	Shrouding	Material Flammability Rating	Style	Contact Finish - Mating	Contact Type	Contact Shape	Number of Rows	Mounting Type	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Termination	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Features
3M 151220-8321-RB	0.307 in	7.8 mm	Unshrouded	UL94 V-0	Board to Board, Cable	Gold	Male Pin	Square	2	Through Hole	Push-Pull	All	Tin	0.13 in	3.3 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	0.06 in	1.52 mm	200 µin	5.08 µm	Header	0.079 in	2 mm	20	Solder	Copper Alloy	105 ░C	-55 °C	0.118 in	3 mm
3M 151220-8422-RB	0.329 in	8.36 mm	Unshrouded	UL94 V-0	Board to Board, Cable	Gold	Male Pin	Square	2	Through Hole	Push-Pull	All	Tin	0.152 in	3.86 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	0.06 in	1.52 mm	200 µin	5.08 µm	Header	0.079 in	2 mm	20	Solder	Copper Alloy	105 ░C	-55 °C	0.118 in	3 mm
3M 151220-2420-RB-WC			Unshrouded	UL94 V-0		Gold	Male Pin	Square	2	Surface Mount	Push-Pull	All	Tin	0.152 in	3.86 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	0.06 in	1.52 mm	200 µin	5.08 µm	Header	0.079 in	2 mm	20	Solder	Copper Alloy	105 ░C	-55 °C			Pick and Place
3M 151220-8422-TB	0.329 in	8.36 mm	Unshrouded	UL94 V-0	Board to Board, Cable	Gold	Male Pin	Square	2	Through Hole	Push-Pull	All	Tin-Lead	0.152 in	3.86 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	0.06 in	1.52 mm	200 µin	5.08 µm	Header	0.079 in	2 mm	20	Solder	Copper Alloy	105 ░C	-55 °C	0.118 in	3 mm
3M 151220-7322-RB			Unshrouded	UL94 V-0	Board to Board, Cable	Gold	Male Pin	Square	2	Through Hole, Right Angle	Push-Pull	All	Tin	0.13 in	3.3 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	0.165 in	4.2 mm	200 µin	5.08 µm	Header	0.079 in	2 mm	20	Solder	Copper Alloy	105 ░C	-55 °C	0.118 in	3 mm
3M 151220-7422-RB			Unshrouded	UL94 V-0	Board to Board, Cable	Gold	Male Pin	Square	2	Through Hole, Right Angle	Push-Pull	All	Tin	0.152 in	3.86 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	0.165 in	4.2 mm	200 µin	5.08 µm	Header	0.079 in	2 mm	20	Solder	Copper Alloy	105 ░C	-55 °C	0.118 in	3 mm
3M 151220-8322-RB	0.307 in	7.8 mm	Unshrouded	UL94 V-0	Board to Board, Cable	Gold	Male Pin	Square	2	Through Hole	Push-Pull	All	Tin	0.13 in	3.3 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	0.06 in	1.52 mm	200 µin	5.08 µm	Header	0.079 in	2 mm	20	Solder	Copper Alloy	105 ░C	-55 °C	0.118 in	3 mm
3M 151220-7422-TB			Unshrouded	UL94 V-0	Board to Board, Cable	Gold	Male Pin	Square	2	Through Hole, Right Angle	Push-Pull	All	Tin-Lead	0.152 in	3.86 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	0.165 in	4.2 mm	200 µin	5.08 µm	Header	0.079 in	2 mm	20	Solder	Copper Alloy	105 ░C	-55 °C	0.118 in	3 mm
3M 151220-2420-RB			Unshrouded	UL94 V-0		Gold	Male Pin	Square	2	Surface Mount	Push-Pull	All	Tin	0.152 in	3.86 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	0.06 in	1.52 mm	200 µin	5.08 µm	Header	0.079 in	2 mm	20	Solder	Copper Alloy	105 ░C	-55 °C
