6127V1A180L.5FS

Active

TT Electronics/BI

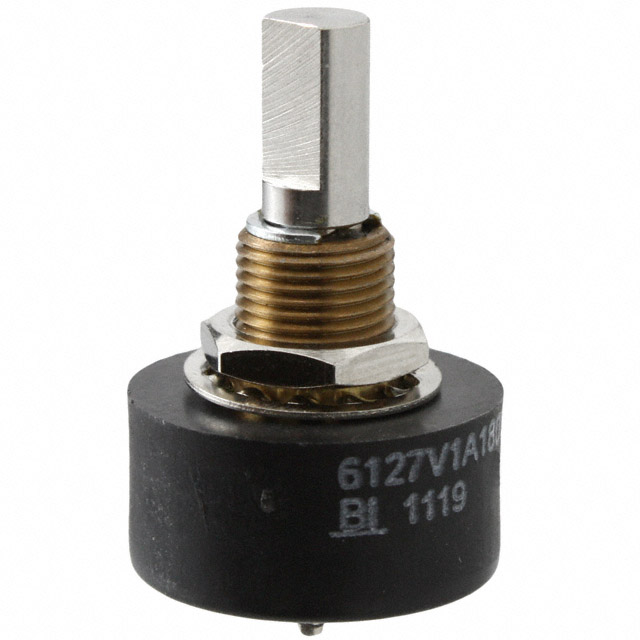

SENSOR ROTARY 180DEG SLDR TURRET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6127V1A180L.5FS

Active

TT Electronics/BI

SENSOR ROTARY 180DEG SLDR TURRET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 23.39
		10	$ 19.50
		30	$ 17.27
		80	$ 16.71
		440	$ 15.60

Description

General part information

6127V Series

Hall Effect Sensor Rotary Position Flatted Shaft Solder Turret

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6127V1A180L.5FS	6127V Series

Actuator Type	Flatted Shaft	Flatted Shaft, Round Shaft
For Measuring	Rotary Position	Rotary Position
Linearity	0.5 %	0.25 - 0.5 %
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	Analog Voltage	Analog Voltage
Output Signal	Clockwise Increase	Clockwise Increase
Package / Case	Flatted Shaft, Module	Flatted Shaft, Module, Round Shaft
Rotation Angle - Electrical, Mechanical	-	200 °
Rotation Angle - Electrical, Mechanical	-	0 °
Rotation Angle - Electrical, Mechanical [Max]	180 °	15 - 320 °
Rotation Angle - Electrical, Mechanical [Min]	0 °	0 °
Technology	Hall Effect	Hall Effect
Termination Style	Solder Turret	Solder Turret
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

6127V Series

SENSOR ROTARY 90DEG SLDR TURRET

Part	Termination Style	Actuator Type	Package / Case	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Linearity	For Measuring	Output	Output Signal	Voltage - Supply [Min]	Voltage - Supply [Max]	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max] [custom]	Rotation Angle - Electrical, Mechanical [Min] [custom]
TT Electronics/BI 6127V1A90L.25FS	Solder Turret	Flatted Shaft	Flatted Shaft, Module	Hall Effect	125 °C	-40 °C	0.25 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V	90 °	0 °
TT Electronics/BI 6127V5A320L.5	Solder Turret	Round Shaft	Module, Round Shaft	Hall Effect	125 °C	-40 °C	0.5 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V	320 °	0 °
TT Electronics/BI 6127V1A90L.5FS	Solder Turret	Flatted Shaft	Flatted Shaft, Module	Hall Effect	125 °C	-40 °C	0.5 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V	90 °	0 °
TT Electronics/BI 6127V3A80L.5	Solder Turret	Round Shaft	Module, Round Shaft	Hall Effect	125 °C	-40 °C	0.5 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V	80 °	0 °
TT Electronics/BI 6127V1A120L.5	Solder Turret	Round Shaft	Module, Round Shaft	Hall Effect	125 °C	-40 °C	0.5 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V	120 °	0 °
TT Electronics/BI 6127V1A200L.5	Solder Turret	Round Shaft	Module, Round Shaft	Hall Effect	125 °C	-40 °C	0.5 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V			200 °	0 °
TT Electronics/BI 6127V1A15L.5	Solder Turret	Round Shaft	Module, Round Shaft	Hall Effect	125 °C	-40 °C	0.5 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V	15 °	0 °
TT Electronics/BI 6127V3A50L.5FS	Solder Turret	Flatted Shaft	Flatted Shaft, Module	Hall Effect	125 °C	-40 °C	0.5 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V	50 °	0 °
TT Electronics/BI 6127V1A180L.5FS	Solder Turret	Flatted Shaft	Flatted Shaft, Module	Hall Effect	125 °C	-40 °C	0.5 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V	180 °	0 °
TT Electronics/BI 6127V1A90L.5	Solder Turret	Round Shaft	Module, Round Shaft	Hall Effect	125 °C	-40 °C	0.5 %	Rotary Position	Analog Voltage	Clockwise Increase	4.5 V	5.5 V	90 °	0 °
