Technical Specifications
Parameters and characteristics for this part
| Specification | 31770 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Height Stacking (Mating) [z] | 5.16 mm |
| Height Stacking (Mating) [z] | 0.203 in |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 3.18 mm |
| Insulation Diameter [Max] [diameter] | 0.125 " |
| Insulation Diameter [Min] [diameter] | 2.03 mm |
| Insulation Diameter [Min] [diameter] | 0.08 in |
| Length - Overall [x] | 20.57 mm |
| Length - Overall [x] | 0.81 in |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.86 | |
| 10 | $ 1.70 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.64 | |||
| 100 | $ 1.52 | |||
| 250 | $ 1.49 | |||
| 500 | $ 1.36 | |||
| 1000 | $ 1.22 | |||
| 3000 | $ 1.12 | |||
Description
General part information

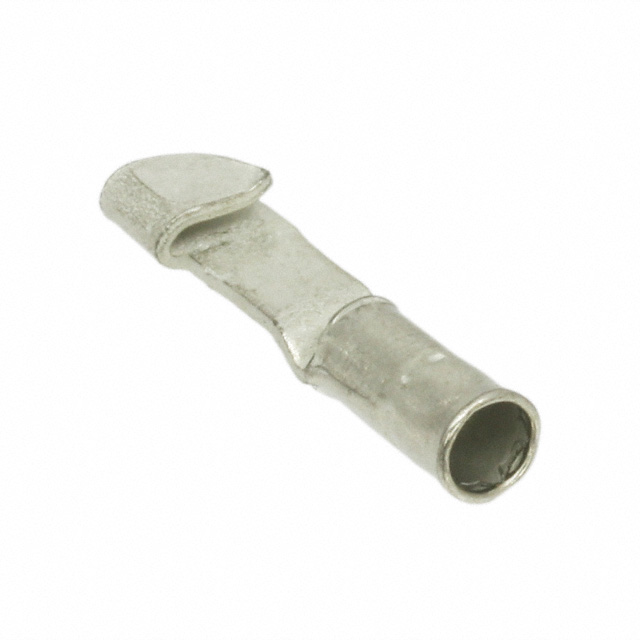

STRATO-THERM DIAMOND GRIP Series
Tin, Wire Insulation Support, 22 – 16 AWG, .26 – 1.65 mm² Wire, .561 – 3.26 kcmil, Loose Piece, STRATO-THERM DIAMOND GRIP, Knife Disconnects
