XS300113 BK008

Active

ALPHA WIRE

SLEEVING 1.13" ID POLY HF 25' BK

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 1.13" ID POLY HF 25' BK

Technical Specifications

Parameters and characteristics for this part

Specification	XS300113 BK008

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside [diameter]	28.7 mm
Diameter - Inside [diameter]	1.13 in
Diameter - Outside [diameter]	1.22 in
Diameter - Outside [diameter]	30.99 mm
Environment Protection	Environment Resistant, Corrosion Resistant, UV Resistant, Weather Resistant
Features	Chemical Resistant, Clean Cut, Vermin Resistant, Fungus Resistant, Tight Weave
Length [x]	25 ft
Length [x]	7.62 m
Liquid Protection	Fuel Resistant
Material	Nylon, Polyamide (PA), Halogen Free
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-45 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	1.14 mm
Wall Thickness	0.045 in

SLEEVING 1.13" ID POLY HF 25' BK

Part	Liquid Protection	Wall Thickness	Wall Thickness	Features	Material	Length [x]	Length [x]	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Abrasion Protection	Operating Temperature [Max]	Operating Temperature [Min]	Color	Type Attributes	Environment Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]
ALPHA WIRE XS300113 BK008	Fuel Resistant	1.14 mm	0.045 in	Chemical Resistant, Clean Cut, Fungus Resistant, Tight Weave, Vermin Resistant	Halogen Free, Nylon, Polyamide (PA)	25 ft	7.62 m	Sleeving	1.22 in	30.99 mm	Abrasion Resistant	120 °C	-45 °C	Black	Braided	Corrosion Resistant, Environment Resistant, UV Resistant, Weather Resistant	28.7 mm	1.13 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

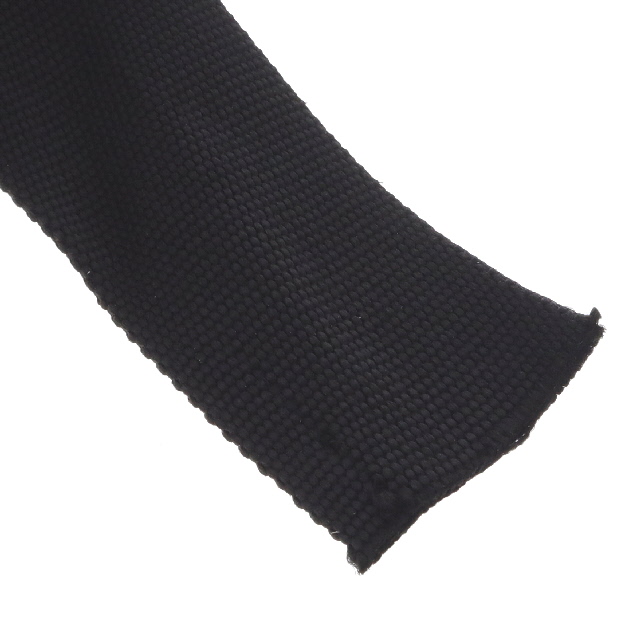

Black Polyamide (PA), Nylon, Halogen Free Braided Sleeving 1.130" (28.70mm) 25.00' (7.62m)
