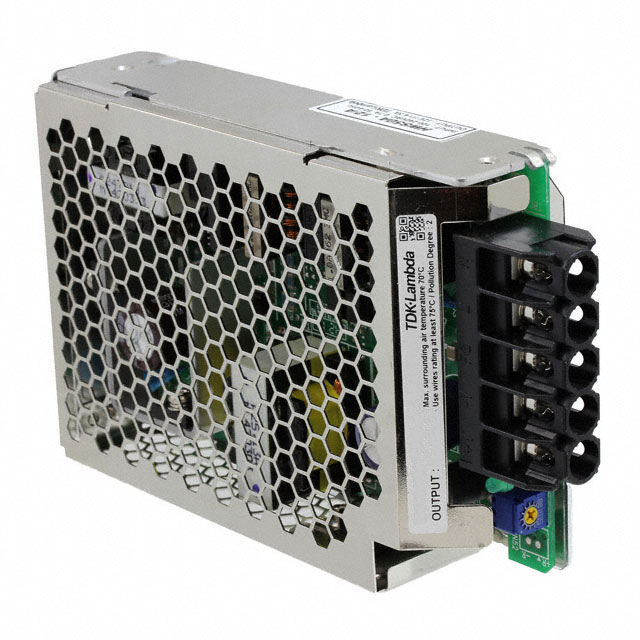

HWS50A-15/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 52.5 W, 15 V, 3.5 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 52.5 W, 15 V, 3.5 A

Technical Specifications

Parameters and characteristics for this part

Specification	HWS50A-15/A

Applications	Industrial, ITE (Commercial)
Approval Agency	CE
Current - Output 1	4.3 A
Efficiency	81 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	50 W
Size / Dimension [x]	4.72 in
Size / Dimension [x]	119.9 mm
Size / Dimension [y]	26.4 mm
Size / Dimension [y]	1.04 in
Size / Dimension [z]	82 mm
Size / Dimension [z]	3.23 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Applications	Power (Watts)	Voltage - Isolation	Features	Current - Output 1	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Type	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Voltage - Output 1
TDK-LAMBDA HWS50A-48/HD	120 mm	3.23 "	82 mm	26.5 mm	1.04 in	4.72 in	1	ITE (Commercial)	53 W	3000 V	Adjustable Output PFC Universal Input	1.1 A	86 %	-10 °C	71 °C	CE	Conformal Coated Open Frame	265 VAC 370 VDC	85 VAC 120 VDC	Chassis Mount	48 V
TDK-LAMBDA HWS50A-15/A	119.9 mm	1.04 in	26.4 mm	82 mm	3.23 in	4.72 in	1	Industrial ITE (Commercial)	50 W	3000 V	Adjustable Output Universal Input	4.3 A	81 %	-10 °C	70 °C	CE	Enclosed	264 VAC 370 VDC	85 VAC 120 VDC	Chassis Mount	15 V
TDK-LAMBDA HWS50A-12/HD	120 mm	3.23 "	82 mm	26.5 mm	1.04 in	4.72 in	1	ITE (Commercial)	51 W	3000 V	Adjustable Output PFC Universal Input	4.3 A	85 %	-10 °C	71 °C	CE	Conformal Coated Open Frame	265 VAC 370 VDC	85 VAC 120 VDC	Chassis Mount	12 V
TDK-LAMBDA HWS50A-15/ME	119.9 mm	1.24 in	31.5 mm	82 mm	3.23 in	4.72 in	1	ITE (Commercial) Medical	50 W	3000 V	Adjustable Output DC Input Capable Universal Input	3.5 A	86 %	-10 °C	70 °C	CE	Enclosed	265 VAC	85 VAC	Chassis Mount	15 V
TDK-LAMBDA HWS50A-12/A	119.9 mm	1.04 in	26.4 mm	82 mm	3.23 in	4.72 in	1	Industrial ITE (Commercial)	50 W	3000 V	Adjustable Output Universal Input	4.3 A	81 %	-10 °C	70 °C	CE	Enclosed	264 VAC 370 VDC	85 VAC 120 VDC	Chassis Mount	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC, 120 ~ 370 VDC Input
