DPIULC6-6DJL
ActiveSTMicroelectronics
TVS DIODE 3VWM 17VC 18DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DPIULC6-6DJL
ActiveSTMicroelectronics
TVS DIODE 3VWM 17VC 18DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DPIULC6-6DJL |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 1.5 pF |
| Current - Peak Pulse (10/1000µs) | 5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

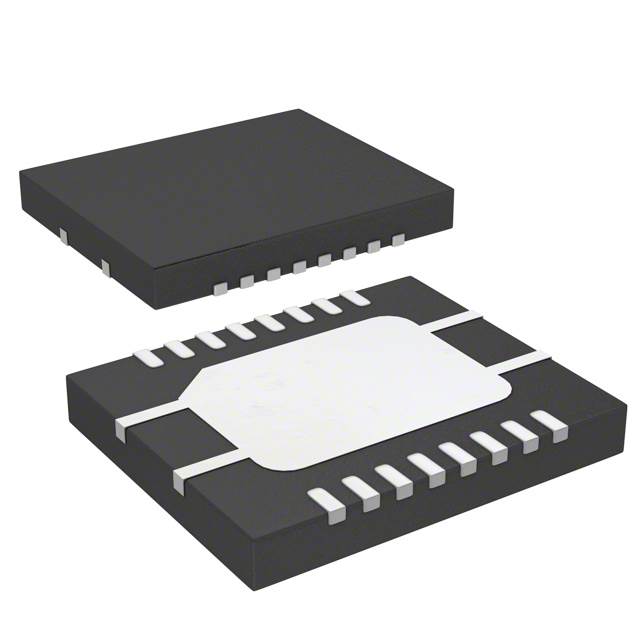

| Package / Case | 18-VFDFN Exposed Pad |
| Power Line Protection | True |
| Supplier Device Package | 18-DFN (5x6) |
| Type | Steering |
| Unidirectional Channels [custom] | 4 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 17 V |
| Voltage - Reverse Standoff (Typ) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.75 | |
| 6000 | $ 0.72 | |||
| 9000 | $ 0.70 | |||
DPIULC6 Series
TVS DIODE 3VWM 17VC 18DFN
| Part | Voltage - Breakdown (Min) [Min] | Mounting Type | Unidirectional Channels [custom] | Applications | Type | Power Line Protection | Voltage - Clamping (Max) @ Ipp [Max] | Supplier Device Package | Voltage - Reverse Standoff (Typ) | Current - Peak Pulse (10/1000µs) | Operating Temperature [Min] | Operating Temperature [Max] | Capacitance @ Frequency | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics DPIULC6-6DJL | 6 V | Surface Mount | 4 | General Purpose | Steering | 17 V | 18-DFN (5x6) | 3 V | 5 A | -40 °C | 125 ¯C | 1.5 pF | 18-VFDFN Exposed Pad |
Description
General part information
DPIULC6 Series
17V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 18-DFN (5x6)
