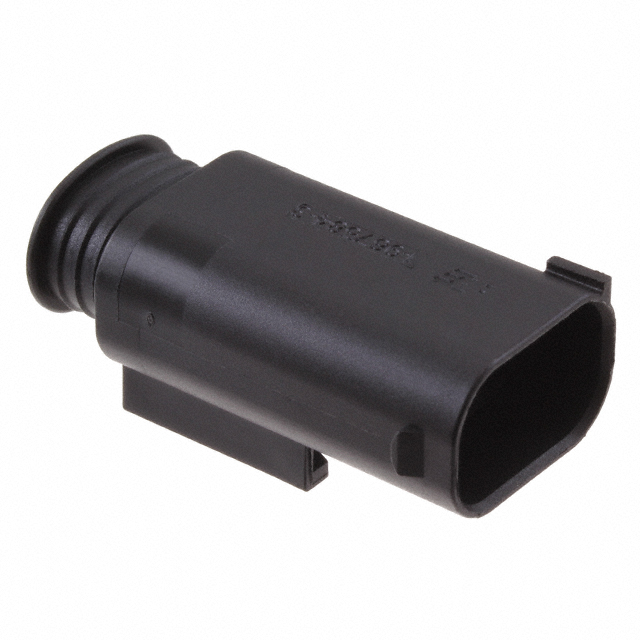

1-967584-3
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 4POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967584-3
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 4POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-967584-3 | 967584 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Type | Male Pin | Male Pin |
| Features | Sealed | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 4 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.80 | |
| 10 | $ 3.39 | |||
| 25 | $ 3.37 | |||
| 50 | $ 3.33 | |||
| 100 | $ 3.01 | |||
| 250 | $ 2.99 | |||
| 500 | $ 2.76 | |||
| 1100 | $ 2.47 | |||
| 3300 | $ 2.28 | |||
967584 Series
CONN PLUG HSG 4POS BLACK
| Part | Color | Connector Type | Contact Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Number of Positions | Note | Mounting Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967584-1 | Black | Plug | Male Pin | Sealed | -40 °C | 120 °C | 2 | 4 | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled |
TE Connectivity AMP Connectors 1-967584-3 | Black | Plug | Male Pin | Sealed | -40 °C | 120 °C | 2 | 4 | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled |
Description
General part information
967584 Series
4 Rectangular Connectors - Housings Plug Black
