AP64200SP-EVM

Active

Diodes Inc

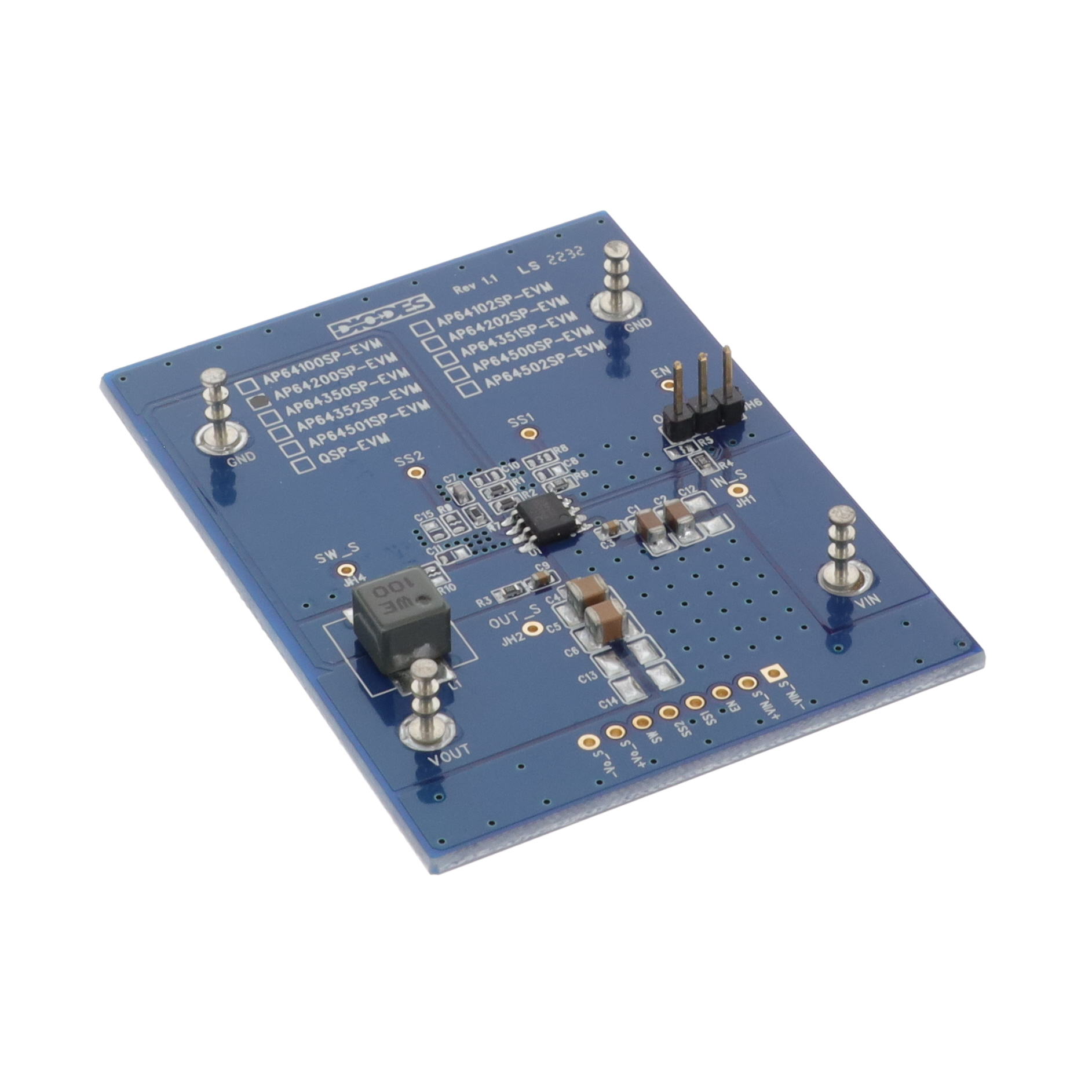

EVAL BOARD FOR AP64200

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP64200SP-EVM

Active

Diodes Inc

EVAL BOARD FOR AP64200

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP64200SP-EVM

Board Type	Fully Populated
Current - Output	2 A
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP64200
Voltage - Input [Max]	40 V
Voltage - Input [Min]	3.8 V
Voltage - Output	5 V, 1.2 V, 12 V, 2.5 V, 1.8 V, 3.3 V, 1.5 V

AP64200 Series

3.8V TO 40V INPUT, 2A LOW IQ SYNCHRONOUS BUCK WITH ADJUSTABLE FREQUENCY

Part	Qualification	Topology	Voltage - Input (Min) [Min]	Function	Grade	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Output (Min/Fixed)	Number of Outputs	Output Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Package / Case	Package / Case	Package / Case	Voltage - Output (Max) [Max]	Current - Output	Supplier Device Package	Board Type	Regulator Topology	Outputs and Type	Outputs and Type	Utilized IC / Part	Main Purpose	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents
Diodes Inc AP64200SP-13	AEC-Q100	Buck	3.8 V	Step-Down	Automotive	Positive	85 °C	-40 °C	Surface Mount	0.8 V	1	Adjustable	100 kHz	2.2 MHz	0.154 in	8-SOIC	3.9 mm	40 V	2 A	8-SO-EP
Diodes Inc AP64200SP-EVM																			2 A		Fully Populated	Buck	Non-Isolated	1	AP64200	DC/DC Step Down	1.2 V 1.5 V 1.8 V 2.5 V 3.3 V 5 V 12 V	3.8 V	40 V	Board(s)
Diodes Inc AP64200QSP-EVM																			2 A		Fully Populated	Buck	Non-Isolated	1	AP64200Q	DC/DC Step Down	1.2 V 1.5 V 1.8 V 2.5 V 3.3 V 5 V 12 V	3.8 V	40 V	Board(s)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 36.25

Description

General part information

AP64200 Series

The AP64200 is a 2A, synchronous buck converter with a wide input voltage range of 3.8V to 40V. The device fully integrates a 150mΩ high-side power MOSFET and an 80mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.
