7953A 0021000

Active

Belden Inc.

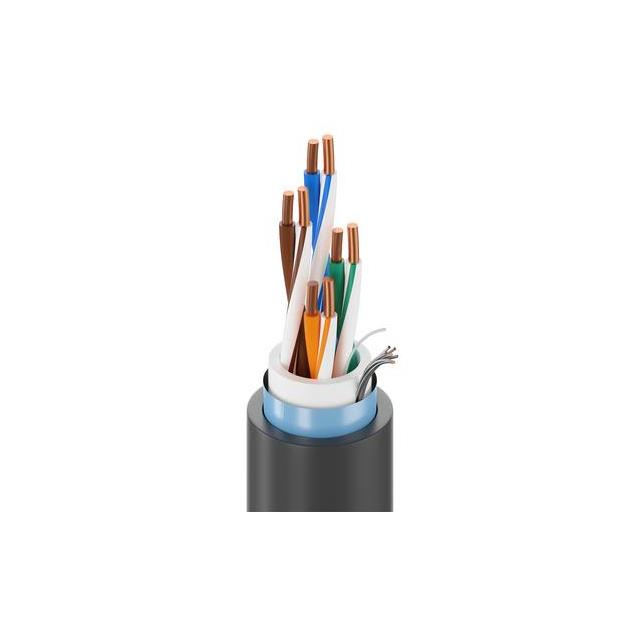

CABLE CAT6 8COND 23AWG RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Industrial Ethernet User Guide

7953A 0021000

Active

Belden Inc.

CABLE CAT6 8COND 23AWG RED

Deep-Dive with AI

DocumentsDatasheet Industrial Ethernet User Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7953A 0021000

Cable Type	Multi-Pair, Cat6
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, UV Resistant, Oil Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	8.51 mm
Jacket (Insulation) Diameter [diameter]	0.335 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 21047
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Industrial, Network
Wire Gauge	23 AWG

7953A Series

Part	Length	Length [x]	Length [x]	Conductor Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Jacket Color	Shield Coverage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Number of Conductors	Features	Conductor Insulation	Jacket (Insulation) Material	Length	Cable Type	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Ratings
Belden Inc. 7953A 0101000	15.24 m 304.8 m	50 ft 100 ft	30.5 m	Copper Bare	Foil	8.51 mm	0.335 "	Network	Black	100 %	23 AWG	0.762 mm	0.03 in	Aluminum	8	Drain Wire Oil Resistant UV Resistant	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	1000 ft	Multi-Pair Cat6	Solid	-40 °C	75 ░C	UL Style CMR
Belden Inc. 7953A 0021000	304.8 m			Copper Bare	Foil	8.51 mm	0.335 "	Industrial Network	Red	100 %	23 AWG	0.762 mm	0.03 in	Aluminum	8	Drain Wire Oil Resistant Rip Cord UV Resistant	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	1000 ft	Multi-Pair Cat6	Solid	-40 °C	75 ░C	UL Style 21047
Belden Inc. 7953A 0061000	304.8 m			Copper Bare	Foil	8.51 mm	0.335 "	Industrial Network	Blue	100 %	23 AWG	0.762 mm	0.03 in	Aluminum	8	Drain Wire Oil Resistant Rip Cord UV Resistant	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	1000 ft	Multi-Pair Cat6	Solid	-40 °C	75 ░C	UL Style 21047
Belden Inc. 7953A 0105000				Copper Bare	Foil	8.51 mm	0.335 "	Industrial Network	Black	100 %	23 AWG	0.762 mm	0.03 in	Aluminum	8	Drain Wire Oil Resistant Rip Cord UV Resistant	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)		Multi-Pair Cat6	Solid	-40 °C	75 ░C	UL Style 21047
Belden Inc. 7953A 0081000	304.8 m			Copper Bare	Foil	8.51 mm	0.335 "	Industrial Network	Gray	100 %	23 AWG	0.762 mm	0.03 in	Aluminum	8	Drain Wire Oil Resistant Rip Cord UV Resistant	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	1000 ft	Multi-Pair Cat6	Solid	-40 °C	75 ░C	UL Style 21047

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.98

Description

General part information

7953A Series

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6 Cable Red 23 AWG Foil 1000.0' (304.8m)
